UV IR Laser Protection Window For 190-420nm And 860-1300nm Cast Acrylic Sheet

UV IR Laser Protection Window For 190-420nm And 860-1300nm Cast Acrylic Sheet
UV IR Laser Protection Window For 190-420nm And 860-1300nm Cast Acrylic Sheet UV IR Laser Protection Window For 190-420nm And 860-1300nm Cast Acrylic Sheet

Large Image :  UV IR Laser Protection Window For 190-420nm And 860-1300nm Cast Acrylic Sheet

Product Details:
Place of Origin: China
Brand Name: Xinland
Certification: CE
Model Number: XL5PW4D5T
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiated
Packaging Details: 10pcs/carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability: 10000pcs per month

UV IR Laser Protection Window For 190-420nm And 860-1300nm Cast Acrylic Sheet

Description
Product Name: 190~420nm&860~1300nm Safety Window Dimension: 1280x1000x5mm
Gross Weight: 80kg TH: 5mm
OD: 4+ Blocking Rate: 28%
High Light:

420nmIR Laser Protection Window

,

1300nm IR Laser Protection Window

,

1300nm Cast Acrylic Sheet

UV IR Laser Protection Window for 190-420nm& 860-1300nm Cast Acrylic Sheet Laser Blocking Window
Product Details:

  • The Laser Safety Windows supplied by Xi’an Xinland International Co., Ltd are chosen from European’s superior PMMA material.
  • PMMA Acrylic Protection Sheet is Light in Weight less than half the weight with compared to inorganic glass.
  • Chemical Resistant Acrylic is resistant to inorganic chemicals and normal chained hydrocarbons.
  • Kind Note: Acrylic contact with organic solvents may cause swelling, crazing, or cracking!

Technical details:
Visible light Transmittance:28%
Optical Density(OD): 4+
Thickness:5mm

Dimension 1280*1000*5mm
Package 10pcs/carton
G.W 80kg
Protection Wavelength 190~420nm&860~1300nm

Technical details:



UV IR Laser Protection Window For 190-420nm And 860-1300nm Cast Acrylic Sheet 0
Notes:
1. The window's maximum size is 1280*1000*5mm,we can cut that for customer size,free cutting service
2. The laser safety window can extensively apply in laser industry manufacturing, range finding,aligning,medical treatment, etc.
Credit management:
1: We are Professional for laser safety glasses over 10 years.
2: One of the company's rule is quality always first
3: Skilled staff, we provide our staffs in their job a brisk and pleasure envirement;
they're trained monthly on skills and job responsibilities;

Why choose Xi'an Xinland International Co.,Ltd?
Because we provied high quatity laser safety winodw, the material is European's superior PMMA and Covering many bands, Inciuding: 190~550nm; 580~750nm; 800~1100nm; 190~450nm&800~1700nm; 190~420nm&850~1300nm and Co2 laser.
Laser Safety Window Catalog:

Model Number Proection Wavelength Optical Density Blocking Rate Size Thickness
XL1PW4D3T 190-550nm 4+ 15% 1280*1000mm 3mm
XL1PW5D5T 5+ 15% 1280*1000mm 5mm
XL2PW4D5T 580-750nm 5+ 40% 1280*1000mm 5mm
XL3PW4D3T 800-1100nm 4+ 60% 1280*1000mm 3mm
XL3PW4D5T 4+ 73% 1280*1000mm 5mm
XL3PW6D5T 800-1100nm 6+ 60% 1280*1000mm 5mm
XL3PW8D5T 800-1100nm 8+ 42% 1280*1000mm 5mm
XL3PW4GD5T 190-540nm&800-1100nm 4+ 25% 1280*1000mm 5mm
XL4PW4D5T 190-450nm&800-1700nm 4+ 35% 1280*1000mm 5mm
XL5PW4D5T 190-420nm&860-1300nm 4+ 28% 1280*1000mm 5mm
XL6PW4D3T 1064nm&10600nm 4+ 40% 1200*1000mm 3.3mm
XL6PW4D5T 1064nm&10600nm 6+ 30% 1200*1000mm 5mm
XL7PW4D5T 10600nm 6+ 90% 1200*1000mm 5mm

 Our Services:
Payment Method: PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.Our Services:

Shipping Method: DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
Packaging & Delivery:

Packaging Details: Carton
Delivery Time: 8-13 days
Lead Time: 8-13 days

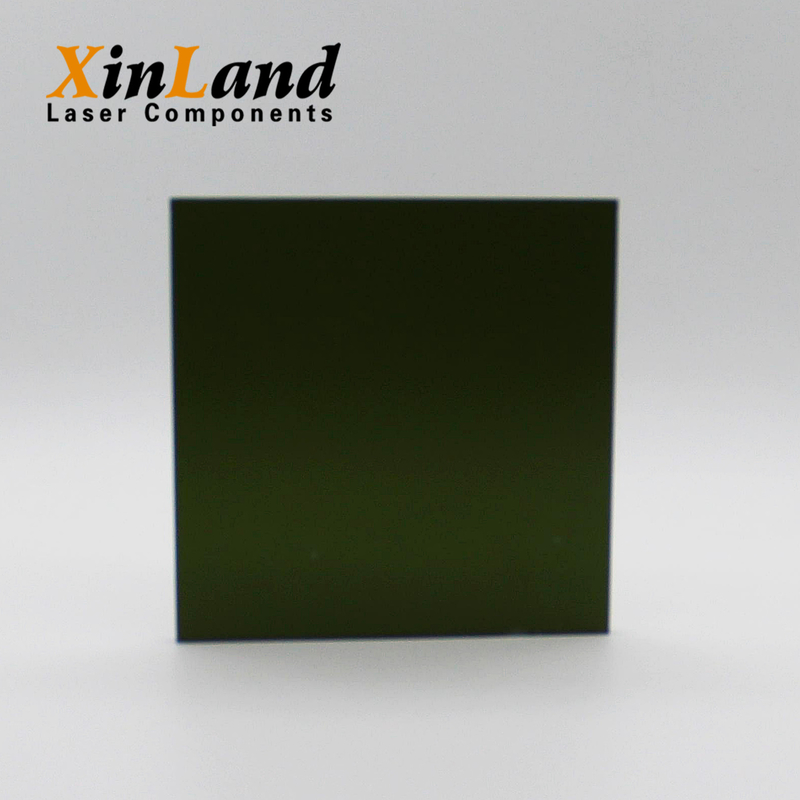

Product Photo:
UV IR Laser Protection Window For 190-420nm And 860-1300nm Cast Acrylic Sheet 1
