| Place of Origin: | Xi'an Shaanxi China |
| Brand Name: | XINLAND |
| Certification: | CE |
| Model Number: | XLM-635-K Multimode Collimated Laser Diode |

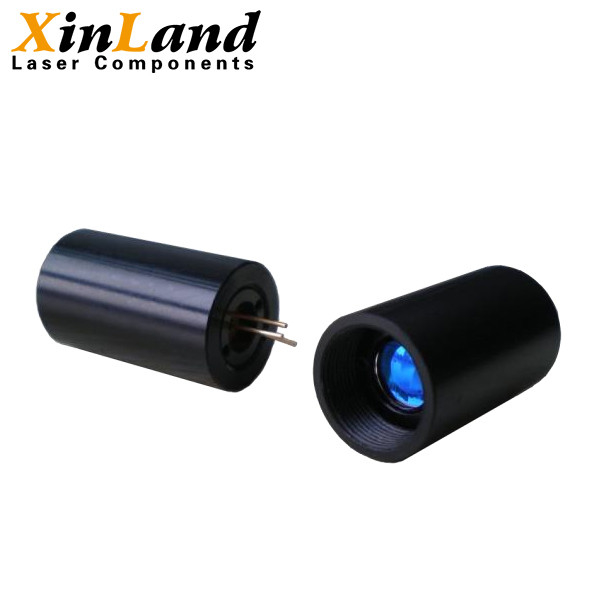

Red Laser 635nm 500mW/1W Laser Diode Multimode Collimated Laser Diode without PD
Product Details:
Type: Collimated Laser Diode
Wavelength: 635nm
Mode Type: Multi-mode
Diode Type: without Photodiodes
Beam Divergence: ≤10mrad
Product Specifications:
| Wavelength | Part Number | Output Power | Mode Type | Photodiodes | Beam Divergence |
| 635nm | XLM-635-500m-K | 500mW | Multi-mode | × | ≤10mrad |
| XLM-635-001-K | 1W | Multi-mode | × | ≤10mrad | |
| 808nm | XLM-808-800m-K | 800mW | Multi Mode | ○ | ≤10mrad |
| 830nm | XLM-830-800m-K | 800mW | Multimode | ○ | ≤10mrad |
| 860nm | XLM-860-800m-K | 800mW | Multimode | ○ | ≤10mrad |
| 940nm | XLM-940-800m-K | 800mW | Multimode | ○ | ≤10mrad |
| 980nm | XLM-980-800m-K | 800mW | Multimode | ○ | ≤10mrad |
Wide Application:
Level instrument, ground instrument, electric toys, long distance laser wireless communication, stage light, flashlight, laser gyro, laser pointer, electric toy, industrial use. etc.
