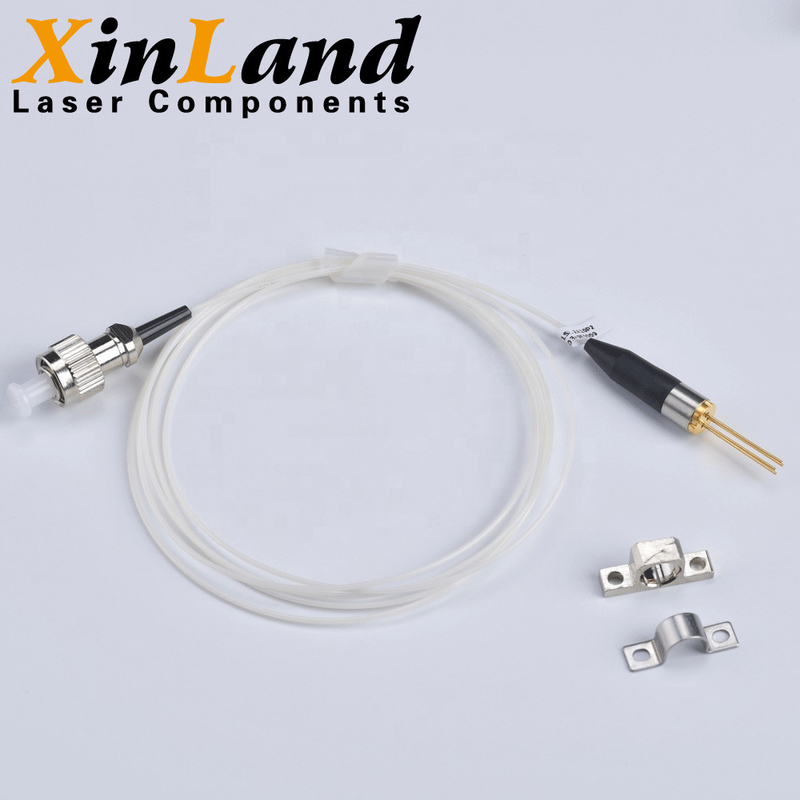

Standard FC Fiber Interface 488nm-525nm Mini Laser Diode Medical Diode Laser

Standard FC Fiber Interface 488nm-525nm Mini Laser Diode Medical Diode Laser
Standard FC Fiber Interface 488nm-525nm Mini Laser Diode Medical Diode Laser Standard FC Fiber Interface 488nm-525nm Mini Laser Diode Medical Diode Laser

Large Image :  Standard FC Fiber Interface 488nm-525nm Mini Laser Diode Medical Diode Laser

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XINLAND
Certification: CE
Model Number: XLP-488~XLX-525 Multi Mode Fiber Coupled Laser Diode
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiated
Packaging Details: 1pcs/polybag,10pcs/inner box,100pcs/ctn
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Dozen/Dozens per Day

Standard FC Fiber Interface 488nm-525nm Mini Laser Diode Medical Diode Laser

Description
Place Of Origin:: Xi'an Shaanxi Wavelength: 488nm-525nm
Fiber Type: MMF Fiber Core: 50-400um Optional
Package Type:: Coaxial/8-Pin/9-Pin/P4/P5 Connector: FC
High Light:

FC 525nm Mini Laser Diode

,

FC 488nm Mini Laser Diode

,

488nm Medical Diode Laser

445nm-525nm 465nm 15W High Power Laser Diode Multi Mode Fiber Coupled Laser Diodes for Sale

Product Details​:

Type: Fiber Coupled Laser Diode

Wavelength: 488nm-525nm

Fiber Type: MMF

Fiber Core: 50-400um

Package Type: Coaxial/8-Pin/9-Pin/P4/P5

Connector: FC

Product Specifications:

Fiber coupled laser diodes are now widely used in laser radar, test and measurement, medicine, material processing and optical communications.
Multi-package form of single-mode/multi-mode fiber output can be used: 2-Pin/4-Pin/8-Pin/9-Pin/14-Pin/Coaxial/HHL-01/P4/P5.

Wavelength Output Power Fiber Type Fiber Core Package Connector PD TEC
488nm 30/40mW MMF 105um Coaxial FC × ×
30/40mW MMF 105um 8-Pin FC
30mW MMF 105um 8-Pin FC
505nm 20mW MMF 105um Coaxial FC ×
20mW MMF 105um 8-Pin FC
30/50mW MMF 105um Coaxial FC × ×
30/50mW MMF 105um 8-Pin FC
520nm 30/50mW MMF 105um Coaxial FC ×
30/50mW MMF 105um 8-Pin FC
700mW MMF 50/105um Coaxial FC × ×
700mW MMF 50/105um 9-Pin FC
2/5W MMF 105/400um P4/P5 FC
525nm 700mW MMF 50/105um Coaxial FC × ×
700mW MMF 50/105um 9-Pin FC
2/5W MMF 200/400um P4/P5 FC

Standard FC Fiber Interface 488nm-525nm Mini Laser Diode Medical Diode Laser 0Standard FC Fiber Interface 488nm-525nm Mini Laser Diode Medical Diode Laser 1
