808nm 10W C Mount Mini Laser Diode FAC Optional

808nm 10W C Mount Mini Laser Diode FAC Optional
808nm 10W C Mount Mini Laser Diode FAC Optional 808nm 10W C Mount Mini Laser Diode FAC Optional 808nm 10W C Mount Mini Laser Diode FAC Optional

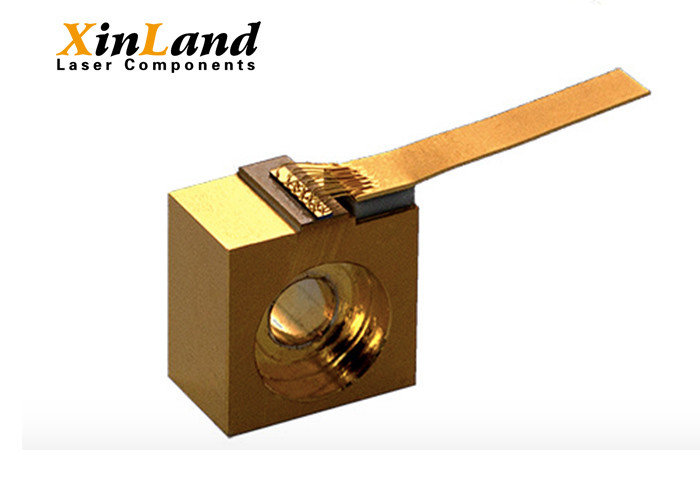

Large Image :  808nm 10W C Mount Mini Laser Diode FAC Optional

Product Details:
Place of Origin: China
Brand Name: Xinland
Certification: N/A
Model Number: XLD-808-010-C
Payment & Shipping Terms:
Minimum Order Quantity: 10 Units
Price: Negotiated
Packaging Details: 100pcs per carton
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 5000 units each Month

808nm 10W C Mount Mini Laser Diode FAC Optional

Description
Center Wavelength: 808nm Spectral Width: 3.5nm
Power: 5W Package: C-MOUNT
Emitter Area: 400x1μm Beam Divergence: 33°┴ X 12°//
High Light:

miniature laser diode

,

laser dot diode

808nm 10W High Power C-mount Package Mini Laser Diode FAC Optional

Features:

808nm
CW
C-MOUNT

Application:

Medical Laser Equipment
Laser Indicator
Laser Detector

C-mount package


Technical Datasheet:



Reverse Voltage

Vr

2.0

V

Operating Temperature

Top

+10~+30

°C

Storage Temperature

Tstg

-20 ~ +80

°C

Lead soldering temperature (10 sec.)

Tis

260

°C


Laser Specification :



  Min Type Max
Center Wavelength@25°C +/-5nm 808nm +/-10nm
Spectral Width (FWHM) -- 3.5nm --
Output Power -- 10W --
Emitter Area -- 400x1μm --
Beam Divergence (FWHM) -- 33°┴ x 12°// --
Temperature Coefficient of Wavelength -- 0.3nm / °C --
Slope Efficiency -- 1.1W/A --
Threshold Current (Typ.) -- 1.5A --
Operating Current (Typ.)   12A --
Operating Voltage ---

2.2 V

-


C-mount Drawing :

808nm 10W C Mount Mini Laser Diode FAC Optional 0
