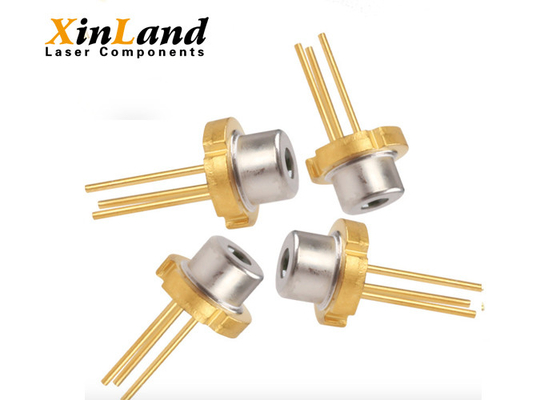

940nm Spatial Optical Communication Mini Laser Diode TO-18

940nm Spatial Optical Communication Mini Laser Diode TO-18
940nm Spatial Optical Communication Mini Laser Diode TO-18 940nm Spatial Optical Communication Mini Laser Diode TO-18

Large Image :  940nm Spatial Optical Communication Mini Laser Diode TO-18

Product Details:
Place of Origin: China
Brand Name: Xi'an Xinland International CO.,LTd
Certification: N/A
Model Number: XL940LD-200
Payment & Shipping Terms:
Minimum Order Quantity: 100 Units
Price: Negotiated
Packaging Details: 100pcs per carton
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 5000 units each Month

940nm Spatial Optical Communication Mini Laser Diode TO-18

Description
Center Wavelength: 940nm Spectral Width: 4.0nm
Power: 200mW Package: TO-18
Beam Diameter: 5.6mm Beam Divergence (FWHM): 35°┴ X 8°//
High Light:

visible laser diode

,

laser dot diode

940nm 200mw Spatial Optical Communication Mini Laser Diode TO-18 Package



Product Overview:





The product adopts the quantum well structure design, a variety of wide structure, 200mW power output.

It has the characteristics of small volume, high transmitting power, good reliability and long life.

Application:
 Solid-state laser pump

Target designation

Stage lighting

Spatial Optical Communication


Technical Datasheet:



1. Maximum absolute rated parameters(Tc=25)



Parameter Symbol Value Unit

Optical Output Po 200 mW

Reverse Voltage Vr 2 V

Operating Temperature Top -10~+40 oC
Storage Temperature Tstg -15~+85 oC



2. Main photoelectric property sheet(Tc=25)



Parameter   Symbol Condition Minimal Typical Maximum Unit

Laser Wavelength   λ P=200mW 937 940 943 nm

Threshold Current   Ith - - 35 65 mA

Working Current   Iop P=200mW - 260 - mA

Operating Voltage   Vop - - 1.7 1.9 V

Beam Parallel θ P=200mW - 6.5 10 o


Divergence Angle Vertical θ P=200mW - 36 40 o




3. The main characteristic curve



Figure 1:Power-current, voltage-current relationship

940nm Spatial Optical Communication Mini Laser Diode TO-18 0



4. Spetrum



940nm Spatial Optical Communication Mini Laser Diode TO-18 1
