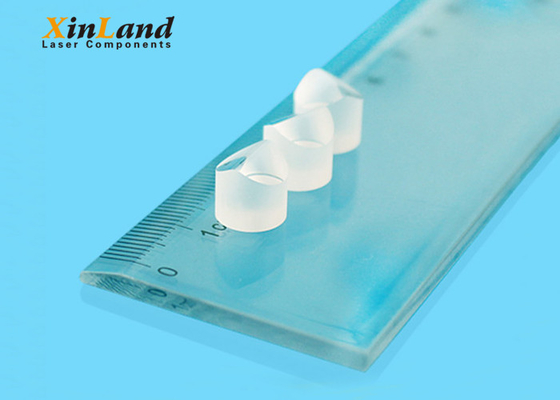

6mm Fan Angle Optical Glass Prism Used In Process Control Fields 45 Degree

6mm Fan Angle Optical Glass Prism Used In Process Control Fields 45 Degree
6mm Fan Angle Optical Glass Prism Used In Process Control Fields 45 Degree 6mm Fan Angle Optical Glass Prism Used In Process Control Fields 45 Degree

Large Image :  6mm Fan Angle Optical Glass Prism Used In Process Control Fields 45 Degree Get Best Price

Product Details:

Place of Origin: China
Brand Name: xinland
Certification: ce
Model Number: Laser Lens

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiated
Packaging Details: 300pcs/carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000pcs per months
Detailed Product Description
Material: Glass Usage: Optical
Structure: Plano-convex Diameter: 6mm
Fan Angle: 45degree Uniformity: >80%
High Light:

cylindrical lens optics

,

plano convex lens

6mm Fan angle 45 Degree Optical Glass Prism Powell Lenses Laser Line Glass



Specifications:



Lens Angle range 1~120 degree
Outside Diameter 9-0.05/+0
Height N±0.05
Material Glass
Beam Spot N±0.05



Product description:



The Powell Lens is one kind of aspheric cylinder lens, which can transform laser beam into a uniform straight laser line. By using Powell Lens, you will get more even energy distribution along the laser line than using the rod lenses and lenses.
At present our Powell lens are available in fan angles of 3degree to 120degree.The optical line generator lens is optimized for a Φ0.8mm, Φ1mm,Φ2mm,Φ3mm,Φ5mm and Φ10mm input laser beam diameter. Using this design will result in an impressive, even distribution of energy along the length of the line. These lenses offer excellent overall stability and line quality. They outperform cylindrical lens that generate Gaussian beam profiles with hot-spot center points and fading edges. Originally designed for laser line generators, they are now offered uncounted for a variety of custom applications including use in alignment, machine vision systems, construction and process control.
The Powell Lens can be widely used in alignment, machine vision systems, construction and process control fields. At present our Powell Lens are available in a variety of fan angles as following.
