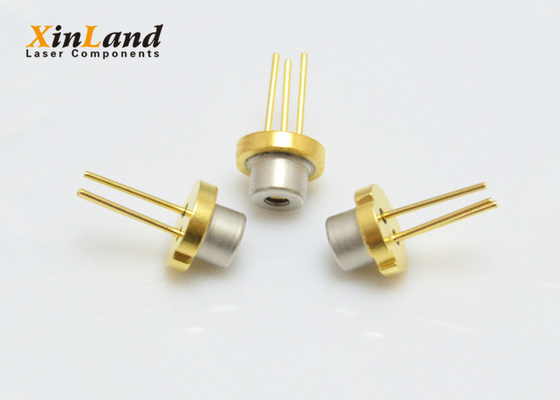

80mw Blue Mini Laser Diode

China 80mw Blue Mini Laser Diode supplier
80mw Blue Mini Laser Diode supplier 80mw Blue Mini Laser Diode supplier

Large Image :  80mw Blue Mini Laser Diode

Product Details:

Place of Origin: China
Brand Name: Xinland
Certification: CE
Model Number: Laser Diode

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: Negotiated
Packaging Details: 10pcs/fanti-static bag
Delivery Time: 5-8 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000pcs per months
Contact Now
Detailed Product Description
Type: Laser Diode Package Type: Through Hole
Max. Forward Voltage: 6V Max. Reverse Voltage: 2V
Max. Forward Current: Standard Max. Reverse Current: Standard

To18 5.6mm 450nm 80mw Mini Laser Diode Blue Lazer Christmas Light



Description:



1. Efficient radiation source for CW and pulsed operation.
2. Single transverse mode semiconductor laser .

3. High quality so cheap TO56 450nm 80mw blue laser diode.



Absolute Maximum Ratings (Tc=25ºC):



Parameter Symbol Min. Max. Unit
Optical Output Power Po - 80 mW
Operating Current Iop - 110 mA
Reverse Voltage VR - 2 V
Operating Case Temperature Tc +10 +70 ºC
Storage Temperature Tstg -40 +85 ºC
Soldering Temperature max. 10 sec. Tsolder - 260 ºC


Electrical and Optical Characteristics (Tc=25ºC):



Parameter Symbol Min. Typ. Max. Unit
Max. Optical Output Power Popmax - 80 120 mw
Emission Wavelength λp 440 450 460 nm
Threshold Current Ith - 22 - mA
Operating Current If - 110 - mA
Operating Voltage Vop - 5.3 - V
Beam Divergence (FWHM) Θ//×Θ⊥ - 10×24 - deg
Polarization Pgr 20:1 - -
Modulation Frequency f - >100 - MHz



Packaging&Shipping:


1. ESD bag
2.3-5 days after receiving the payment by T/T, Western Union, PAYPAL, Secure Payment, Trade Assurance.
3. It will be shipped by DHL/FedEx/UPS/TNT or other special ways, please contact us to choose the best one.
4. Delivery time will be usually 5-8 working days.
