| Place of Origin: | China |
| Brand Name: | Xinland |
| Certification: | CE |
| Model Number: | XL655L1240 |

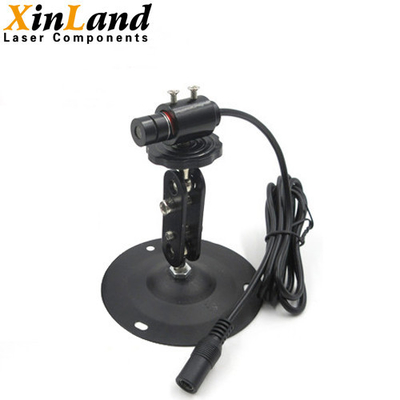

Laser 650nm 5mW Red Laser Line Generator Industrial With Aluminum Material Line Beam
Specification:
1. Laser Diode: 650nm Laser Diode
2. Optical Lens
The laser beam of the laser module will depend on the inner optical lens. Except for dot, line and cross beam, we also can do other laser beams according to your requirements.
3. Drive Circuit: DC2.8-5V Customizable
4. Housing Size: 12x40mm
|
Power |
5mW |
|
Optical Power |
above 3mw |
|
Fan angle |
120 |
|
Line width |
less than 0.5mm |
|
Line length |
above 500mm at 200mm working distance |
|
Flexibility |
≤ 1mm@ 5m |
|
Operating voltage |
DC2.8-5V |
|
Grade |
Glass |
|
Operating temp |
-10º ~50º |
|
Storage temp |
-40º ~80º |
Product Details:
We provide and welcome orders of custom made laser modules with any specification requirement. You can describe the application and the work environment of the laser you desire, and our laser design team will let you know recommend you the most suitable solution, provide from the most cost efficient to the highest quality laser modules.
