|Focal Length:||150mm||Application:||Laser Marking,Stage Light,Scientific Test|

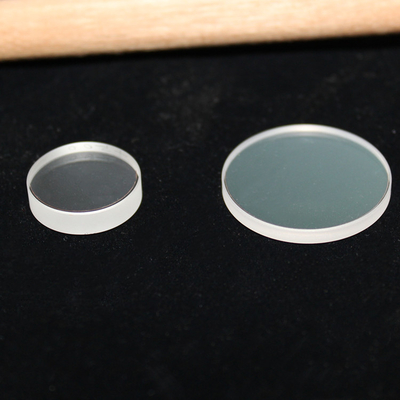

JGS1 Quartz Co2 Laser Focus Lens,
Laser Focus Lens Coating 1064AR,
JGS1 Quartz co2 focus lens
CO2 Laser Cutting Machine Laser JGS1 Quartz Focusing Lens Coating 1064AR
Performence index of quartz focusing lens
1. Scanning range.
The larger the area the lens can scan, the more popular it will be with users. However, if we blindly increase the scanning area, it will bring a lot of problems. Such as points of light thicker, distortion and so on.
2. Focal length (related to working distance, but not equal to working distance).
A. The scanning range is proportional to the focal length of the field lens -- the increase of the scanning range will inevitably lead to the increase of the working distance. The extension of working distance will inevitably lead to the loss of laser energy.
B. The focal spot diameter is proportional to the focal length. This means that when the scanning area reaches a certain degree, the obtained light spot diameter is very large, that is to say, the concentration is not fine enough, and the power density of the laser decreases very fast (the power density is inversely proportional to the square of the spot diameter), which is not conducive to processing.
The function and application of quartz focusing lens
1. Improve the ability of edge beam to hit the detector;
2. In the same main optical system, the additional field mirror will reduce the area of the detector; If the same detector area is used, the field of view can be enlarged and the incident flux can be increased.
3. Homogenize the non-uniform illumination on the photosensitive surface of the detector.
It is mainly used in laser marking machine, stage light, scientific test and laser measuring instrument.
|Product Name||Laser Focusing Lens|
Xi’an Xinland International Co.,Ltd is a professional optical electronics products manufacturer and supplier. Xinland is specialized in developing and selling of all professional laser products and laser components. Laser products cover red, green, blue and blue-violet diode laser module, portable laser, laser line projector, and laser scope and laser sight and protection goggles. Laser Components cover laser diode, collimator lens and power supply.
If you have need,Pls contact us.(E-mail:firstname.lastname@example.org Phone-number:86-18092839845)
Contact Person: Mrs. Nica Chow
