Product Details:
|
| Laser Type:: | SEMICONDUCTOR | Application:: | LASER CUTTING |
|---|---|---|---|
| Applicable Material:: | Stone, Wood | Condition:: | New |
| Cutting Area:: | 1 | Cutting Speed:: | 1 |
| Graphic Format Supported:: | AI | Cutting Thickness:: | 1 |
| High Light: | RGB DPSS Laser module,DPSS Fiber Coupled Laser Diode Modules,RGB Fiber Coupled Laser Diode Modules |
||

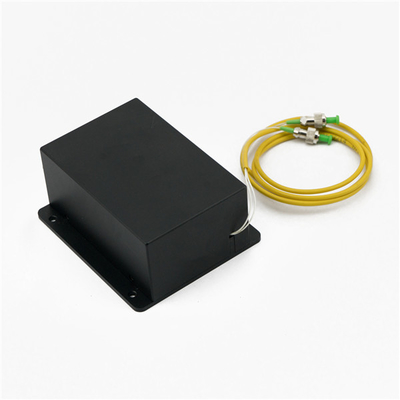

RGB Fiber Coupled Laser Diode Module DPSS Laser Kit Lighting pd
Quick Details
Laser Type:SEMICONDUCTOR
Application:LASER CUTTING
Applicable Material:Stone, wood
Condition:New
Cutting Area:1
Cutting Speed:1
Graphic Format Supported:AI
Cutting Thickness:1
CNC or Not:No
Cooling Mode:Air Cooling
Control Software:no
Place of Origin:Shaanxi, China
Brand Name:XINLAND
Certification:ISO, Sgs
After-sales Service Provided:Engineers available to service machinery overseas
wavelength:405nm-980nm
output power:1mW ~ 1000mW
life time:>8000Hrs
beam type:dot, line, cross
Operating Temp.:-10°C ~ 50°C
Voltage Stability:> 98% (@2.7 ~ 5.5VDC)
Temp. Stability:> 95% (@-10°C ~ 50°C)
Housing Material:Alunimium anodized or brass
Laser Type:Fiber laser
Certificated:IEC SGS ISO9001-2008
Supply Ability
Supply Ability:20000 Piece/Pieces per Month
Packaging & Delivery
Lead Time :10-20day depending on the QTY
| Fiber Laser Module |
|
XINLAND could customize the laser module with fiber, fiber core radium has 4μm,50μm,105μm,200μm, etc. It is with SMA, FC or ST connector and different fiber length. The wavelength includes 405nm, 445nm, 520nm, 635nm, 650nm, 780nm, 808nm,830nm, 850nm,980nm. The LD driver or TEC temperature control could be customized.
|
| Low power coaxial Series |
|
Different wavelength with power less than 300mW could be made into coaxial. Its characteristics are lower power consumption, compact size and customized LD driver. PD control could be added to increase stability and reliability of the laser module.
|
|
XL405C10A (405nm Coaxial Series) XL445C10A (445nm Coaxial Series) XL520C10A (520nm Coaxial Series) XL532C10A (532nm Coaxial Series) XL635C10A (635nm Coaxial Series) XL650C10A (650nm Coaxial Series) XL670C10A (670nm Coaxial Series) XL780C10A (780nm Coaxial Series) XL808C10A (808nm Coaxial Series) XL830C10A (830nm Coaxial Series) XL850C10A (850nm Coaxial Series) XL980C10A (980nm Coaxial Series) |
|
| High power butterfly Series | |
| With power more than 500mW is butterfly package and could customized TEC temperature control and LD driver to increase the laser module work temperature range and reliability of the product. Adding PD will increase laser module stability | |
|
XL635B500A (635nm 500mw Butterfly Series) XL650C500A (650nm 500mw Butterfly Series) XL780C500A (780nm 500mw Butterfly Series) XL808C500A (808nm 500mw Butterfly Series) XL30C500A (830nm 500mw Butterfly Series) XL850C500A (850nm 500mw Butterfly Series) XL980C500A (980nm 500mw Butterfly Series)
XL635B1000A (635nm 1000mw Butterfly Series) XL650C1000A (650nm 1000mw Butterfly Series) XL780C1000A (780nm 1000mw Butterfly Series) XL808C1000A (808nm 1000mw Butterfly Series) XL830C1000A (830nm 1000mw Butterfly Series) XL850C1000A (850nm 1000mw Butterfly Series) XL980C1000A (980nm 1000mw Butterfly Series) |
|
| Fiber laser | |
|
Key Feature 1. High quality 2. High Stability 3. High reliability 4. APC driving circuit 5. Low cost 6. Long Life
|
Application: 1. Industrial Instruments and Equipments 2. Wild Explore Instruments 3. Military Instruments and Equipments 4. Medical Instruments 5. Surveying Instruments 6. Bar Scan |
