| Place of Origin: | Xi'an Shaanxi China |
| Brand Name: | XINLAND |
| Certification: | CE |
| Model Number: | XL-D-375 |

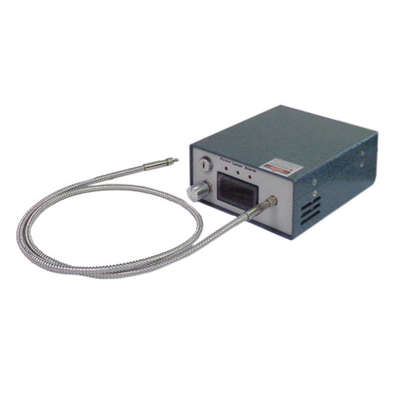

375nm Narrow Linewidth UV Laser Raman Application DPSS Laser Kit
Quick Details
Place of Origin:Xi’an Shaanxi, China
Condition:New
Warranty:1 Year
After-sales Service Provided:
Free spare parts, Video technical support, Field maintenance and repair service, Online support, Field installation, commissioning and training
Spare Parts Type:None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Brand Name:XINLAND
Key Selling Points:Long Service Life
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:University/Company
Weight (KG):3.5 KG
Local Service Location:
Canada, Turkey, Italy, France, Germany, Brazil, Peru, Saudi Arabia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, South Korea, Chile
Wavelength:375nm
Output power:20mW
Operating mode:CW
Spectral linewidth (nm):<0.06 (<0.03, <0.1nm optional)
Supply Ability
Supply Ability:2000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details:vaccum anti-static
Port:Xi’an Shaanxi
Lead Time :
|
Quantity(Pieces) |
1 - 1 |
>1 |
|
Est. Time(days) |
21 |
To be negotiated |
Product Description
It features integrated electronics, small size and light weight. Xinland can provide fiber coupled version and free space . The spectral linewidth can be reached 0.06nm.
Specification
|
Model |
XL-D-375 |
XL-E-375 |
|
Central wavelength (nm) |
375±0.5 |
|
|
Spectral line width (nm) |
0.1 (0.06, optional) |
<0.06(<0.03 optional) |
|
Operating mode |
CW |
|
|
Fiber core diameter |
100µm, 0.22 NA |
/ |
|
Fiber connector |
SMA905 |
/ |
|
Output power after fiber (mW) |
>1, 2, …, 10 |
>1, 2, 3, …,20 |
|
Transverse mode |
Round beam |
Near TEM00 |
|
M2 factor |
/ |
<1.5 |
|
Beam diameter at the aperture (1/e2 ,mm) |
/ |
~3 |
|
Beam divergence, full angle (mrad) |
/ |
<0.5 |
|
Polarization ratio |
/ |
>10:1 (>50:1, optional) Horizontal±5 degree (Vertical Optional) |
|
Power stability (rms, over 4 hours) |
<1% <2% <3% |
|
|
Central wavelength stability (rms, over 2 hours) (pm) |
<10 |
/ |
|
Noise of amplitude (rms, 1~20MHz) |
<1% |
/ |
|
Warm-up time (minutes) |
<5 |
|
|
Operating temperature (℃) |
20-30 |
|
|
Power supply |
Adaptor(85-264VAC)/5VDC@5A |
XL-III-FDA |
|
Expected lifetime (hours) |
10000 |
|
|
Warranty |
1 YEAR |
|
