Product Details:
|
| Place Of Origin: | Xi’an Shaanxi, China | Brand Name: | XINLAND |
|---|---|---|---|
| Wavelength: | 638nm | Laser Source: | Red Laser |
| Material: | Brass Or Anodised Alunimum | Certificate: | IEC SGS ISO9001 |
| Output Power: | 50-55mW | Voltage: | DC 3-5V |
| Highlight: | 638nm Laser Diode Module,Anodised Aluminium Laser Diode Module,55mW Laser Diode Module |
||

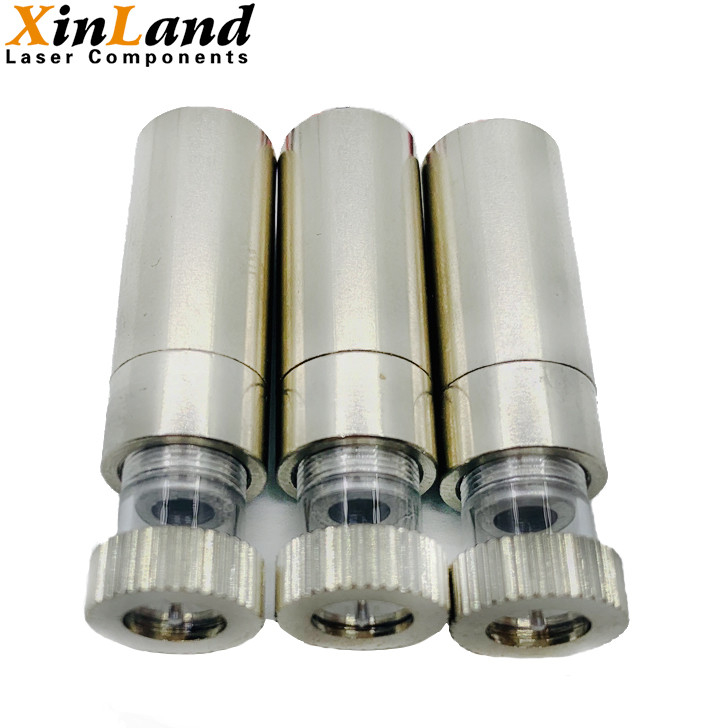

638nm 55mW 360 Degree Red Laser Diode Module for Laser Levels and Industrial Laser Equipment
Quick Details
Place of Origin:Xi’an Shaanxi, China
Brand Name:XINLAND
Applicable Industries:Building Material Shops, Machinery Repair Shops, Construction works , Energy & Mining
Wavelength:638nm
Output Power:50-55mW
Voltage:DC 3-5V
Laser Shape:360° Lens:Glass
Warranty:12 month
Packaging & Delivery
Lead Time :
| Quantity(Pieces) | 1 - 1000 | 1001 - 5000 | 5001 - 10000 | >10000 |
| Est. Time(days) | 5 | 10 | 20 | To be negotiated |
Product Description
Laser Diode Modules from XINLAND are belong to the Customized Products, So give us your list Of requirement and you shall be delighted by what you are going to get back from us.
Laser Diode , Direct Laser Diode Module has been greatly improve the reliability and stability and with its compact size which suitable for wild range of applications and equipment.
Less Power Consumption, Higher reliability and Stability, Better Effectivity!
Specifications(T=25℃)
| Optical and Electrical Specifications | |
| Laser Mode | CW |
| Wavelength | 638nm |
| Output Power | 50-55mW |
| Beam Mode | 360 degree |
| Line Width | 3mm at 5m |
| Operating Current | <150mA |
| Operating Voltage | 3-5VDC |
| Divergence | <1mrad |
| Power Stability | <10% |
| Operating Temperature | -10°C to +40°C |
| Storage Temperature | -20°C to +60°C |
| Optics | Glass Lens |
| CDRH Class | Class IIIb, ROHS compliance |
| MTTF | 8000 Hrs |
| Mechanical Specifications | |
| Dimensions | 14(D)x38.5(L)mm (PCB included) |
| Wire Length | 150mm |
| Housing Material | Anodised Alunimum |
| Vibration | DIN EN 60068-2-6 standard |
| Shock | DIN EN 60068-2-29 standard |
Features
High Stability
High Quality
High Reliability
Fast Rise Time
APC driving circuit
Wide Temperature Range
Low cost / Long Life
