Product Details:
|
| Product Name: | 190~420nm&860~1300nm Safety Window | Dimension: | 1280x1000x5mm |
|---|---|---|---|
| Gross Weight: | 80kg | TH: | 5mm |
| OD: | 4+ | Blocking Rate: | 28% |
| High Light: | 420nmIR Laser Protection Window,1300nm IR Laser Protection Window,1300nm Cast Acrylic Sheet |
||
UV IR Laser Protection Window for 190-420nm& 860-1300nm Cast Acrylic Sheet Laser Blocking Window
Product Details:
Technical details:
Visible light Transmittance:28%
Optical Density(OD): 4+
Thickness:5mm
| Dimension | 1280*1000*5mm |
| Package | 10pcs/carton |
| G.W | 80kg |
| Protection Wavelength | 190~420nm&860~1300nm |
Technical details:
Notes:
1. The window's maximum size is 1280*1000*5mm,we can cut that for customer size,free cutting service
2. The laser safety window can extensively apply in laser industry manufacturing, range finding,aligning,medical treatment, etc.
Credit management:
1: We are Professional for laser safety glasses over 10 years.
2: One of the company's rule is quality always first
3: Skilled staff, we provide our staffs in their job a brisk and pleasure envirement;
they're trained monthly on skills and job responsibilities;
Why choose Xi'an Xinland International Co.,Ltd?
Because we provied high quatity laser safety winodw, the material is European's superior PMMA and Covering many bands, Inciuding: 190~550nm; 580~750nm; 800~1100nm; 190~450nm&800~1700nm; 190~420nm&850~1300nm and Co2 laser.
Laser Safety Window Catalog:
| Model Number | Proection Wavelength | Optical Density | Blocking Rate | Size | Thickness |
| XL1PW4D3T | 190-550nm | 4+ | 15% | 1280*1000mm | 3mm |
| XL1PW5D5T | 5+ | 15% | 1280*1000mm | 5mm | |
| XL2PW4D5T | 580-750nm | 5+ | 40% | 1280*1000mm | 5mm |
| XL3PW4D3T | 800-1100nm | 4+ | 60% | 1280*1000mm | 3mm |
| XL3PW4D5T | 4+ | 73% | 1280*1000mm | 5mm | |
| XL3PW6D5T | 800-1100nm | 6+ | 60% | 1280*1000mm | 5mm |
| XL3PW8D5T | 800-1100nm | 8+ | 42% | 1280*1000mm | 5mm |
| XL3PW4GD5T | 190-540nm&800-1100nm | 4+ | 25% | 1280*1000mm | 5mm |
| XL4PW4D5T | 190-450nm&800-1700nm | 4+ | 35% | 1280*1000mm | 5mm |
| XL5PW4D5T | 190-420nm&860-1300nm | 4+ | 28% | 1280*1000mm | 5mm |
| XL6PW4D3T | 1064nm&10600nm | 4+ | 40% | 1200*1000mm | 3.3mm |
| XL6PW4D5T | 1064nm&10600nm | 6+ | 30% | 1200*1000mm | 5mm |
| XL7PW4D5T | 10600nm | 6+ | 90% | 1200*1000mm | 5mm |
Our Services:
Payment Method: PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.Our Services:
Shipping Method: DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
Packaging & Delivery:
Packaging Details: Carton
Delivery Time: 8-13 days
Lead Time: 8-13 days

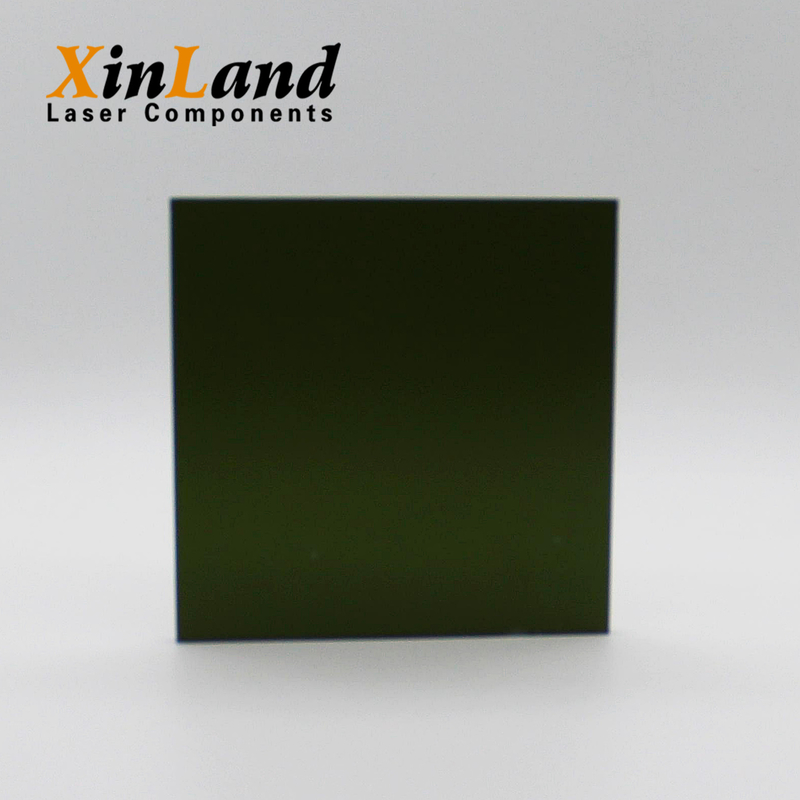

Product Photo:
