Laser Protection Window
>
Security System Laser Welding Protection Cabinet For Fiber Laser Welding Machine

Security System Laser Welding Protection Cabinet For Fiber Laser Welding Machine

Product Details:
Place of Origin: Shaanxi,China
Brand Name: Xinland
Detail Information
Place of Origin:
Shaanxi,China
Brand Name:
Xinland
Size:
2*2*2.5m(No ROOF)/3*3*2.5m(No ROOF)
Trading Information
Minimum Order Quantity:
1set
Price:
USD4750-6500/SET
Delivery Time:
20-30Days
Payment Terms:
T/T
Supply Ability:
10000SETS
Product Description
Laser Protective Cabinet
Xinland laser protective cabinet are designed to offer protection from direct and scattered lasers. We offer safety solutions for your researchers, employees, technicians, radiation safety and more. Our products complies with standard GB7247.1 and the EU EN60825-1 laser safety standards.

Security System Laser Welding Protection Cabinet For Fiber Laser Welding Machine 0

Security System Laser Welding Protection Cabinet For Fiber Laser Welding Machine 1

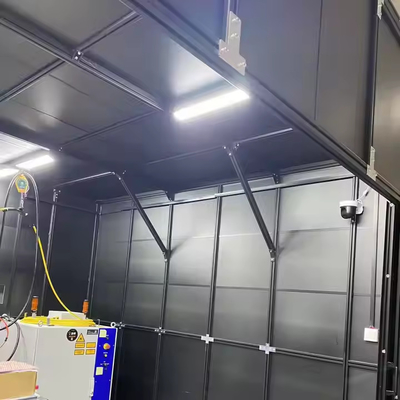

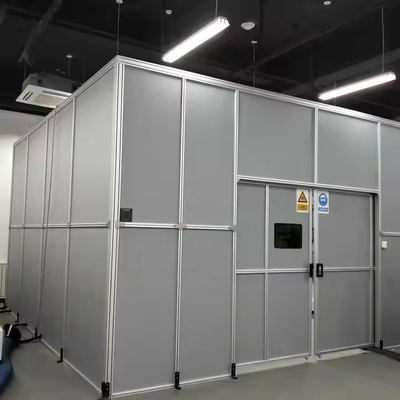

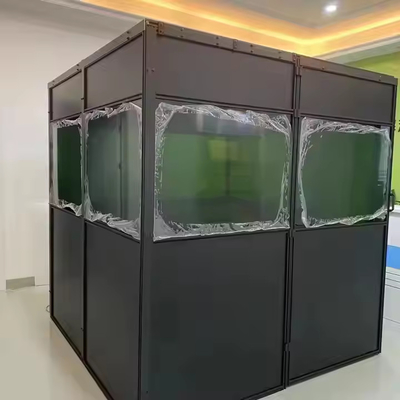

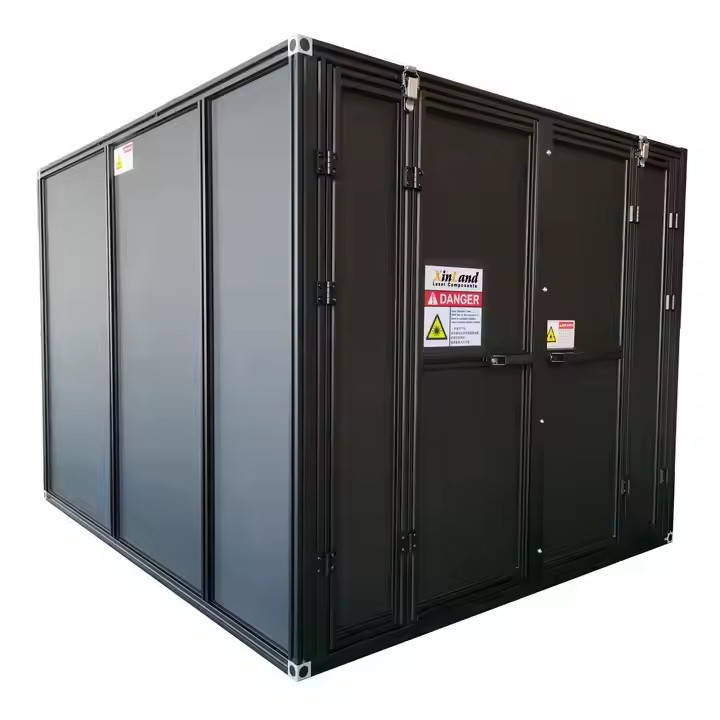

Xinland laser safety cabinet is a complete protection system, which consists of laser protection window, laser safety door, laser safety interlock device, laser warning device, video monitoring and other devices. Professional laser welding protection cabinet is suitable for the closed protection of 10,000-watt high-power laser equipment, large laser equipment and large working space.

Security System Laser Welding Protection Cabinet For Fiber Laser Welding Machine 2Security System Laser Welding Protection Cabinet For Fiber Laser Welding Machine 3



Specification

1, Size: 2*2*2.5m(No ROOF)

2, Main Material: Laser SafetyPlateXL3PW6D5T+ Aluminum profile frame

3. Standard Colors: Black/Gray

4. Laser Safety Standards: GB7247/ EN60825/ IEC60825, PEL>15805.10W/cm²(1070nm φ=1mm T=100s)
5. Standard Configuration:1.2m(Wide)Manualsliding door,Laser Protection Window(OD6+@900-1100nm), Mechanical door lock with induction switch, Three-color warning light, LED lighting, Laser Warning Labels, Laser Safety Goggle XL-SG014K7P(OD7+@800-1095nm)
6. Packaging & Shipping: Export wooden box packaging, land transportation

XL-SG014K7P charged USD 70
each ,we will give 1 pc for free
,the premier is that you can
share us your final installationl
photos and videos
1. Size: 3*3*2.5m(No ROOF)
2,. Main Material: Laser Safety PlateXL3PW6D5T+Aluminum profile frame
3. Standard Colors: Black(Available colors: Gray, more expensive )
4,Laser Safety Standards:GB7247/ EN60825/ IEC60825,
PEL>15805.10W/cm²(1070nm φ=1mm T=100s)
5. Standard Configuration: 1.2m(Wide)Manualsliding door, Laser Protection Window(OD6+@900-1100nm), Mechanical door lock with induction switch, Three-color warning light, LED lighting, Laser Warning Labels, Laser Safety Goggle XL-SG014K7P(OD7+@800-1095nm)
6. Packaging & Shipping: Export wooden box packaging, land transportation
XL-SG014K7P charged USD 70
each ,we will give 4 pc for free
,the premier is that you can
share us your final installationl
photos and videos
Note: The above two sizes are standard sizes, we can also customize other sizes



Key components of a laser-safe workroom

Components Functional Description
Shell material Metal (stainless steel, aluminum alloy), flame retardant plastic or composite material lined with a laser absorbing coating (e.g. black anodized aluminum).
Protective door With interlock device, automatically cut off the laser power supply when the door is opened (in compliance with IEC 60825-1 safety standard).
Observation window Laser protection glass (such as iron-doped glass that can protect against 1064nm wavelength), the optical density (OD) must match the laser power.
Ventilation System HEPA filter + activated carbon adsorption to remove harmful gases/particles (such as metal vapor, plastic smoke) generated by laser.
Beam stop Adjustable baffle to limit the laser scattering range.
