Product Details:
|
| Name: | 800~1100nm Safety Window | Product Wavelength: | 800~1100nm |
|---|---|---|---|
| Packing Size: | 1280x1000mm | G.W: | 80kg |
| Package: | 10pcs/carton | TH: | 5mm |
| VLT: | 73% | OD: | 6+ |
| High Light: | 5mm Laser Protection Window,1064nm Laser Protection Sheet,Range Finding Laser Protection Window |
||
OD6+ 1064nm Absorption of Laser Protective Protection Window Plate
Xinland Laser Safety Window can protect various diffuse light safely and the laser and the glare of the particular waveband can be protected in all directions. Light reaction is faster. Higher attenuation rate. The surface is not afraid of wear and tear, even if there is scratch, it does not affect the safety of light protection.
Technical details:
Visible light Transmittance:73%
Optical Density(OD): 4+
Protection Wavelength: 800~1100nm
| Dimension | 1280*1000*5mm |
| Package | 10pcs/carton |
| G.W | 80kg |
| Thickness | 5mm |
Spectrum Chart:
Notes:
1. The laser safety window can extensively apply in laser industry manufacturing, range finding,aligning,medical treatment, etc.
2. The window's maximum size is 1280*1000*5mm,we can cut that for customer size,free cutting service
Payment Method: PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.
Shipping Method: DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
Laser Safety Window Catalog :
| Series NO. | Protection Wavelength | Dimension(mm) | OD |
| XL1PW4D3T | 190~550nm | 1280*1000*3.3mm | 4+ |
| XL1PW5D5T | 190~550nm | 1280*1000*5mm | 5+ |
| XL2PW4D5T | 580nm~750nm | 1280*1000*5mm | 5+ |
| XL3PW4D5T | 800~1100nm | 1280*1000*5mm | 4+ |
| XL3PW6D5T | 800~1100nm | 1280*1000*5mm | 6+ |
| XL3PW8D5T | 800~1100NM | 1280*1000*5mm | 8+ |
| XL3PW4GD5T | 190~540nm & 800~1100nm | 1280*1000*5mm | 4+ |
| XL4PW4D5T | 190~450nm & 800~1700nm | 1280*1000*5mm | 4+ |
| XL5PW4D5T | 190~420nm & 860~1300nm | 1280*1000*5mm | 4+ |
| XL6PW4D3T | 1064nm&10600nm | 1200*1000*3.3mm | 4+ |
| XL6PW5D5T | 1064nm&10600nm | 1200*1000*5mm | 5+ |
| XL6PW6D5T | 1064nm&10600nm | 1200*1000*5mm | 6+ |
| XL7PW4D5T | 10600nm | 1200*1000*5mm | 6+ |
Packing:
| Selling Units | Single item |
| Single package size | 1280X1000X5mm |
| Single gross weight | 8.0 KG |
| Package Type | 10PCS/CARTON |

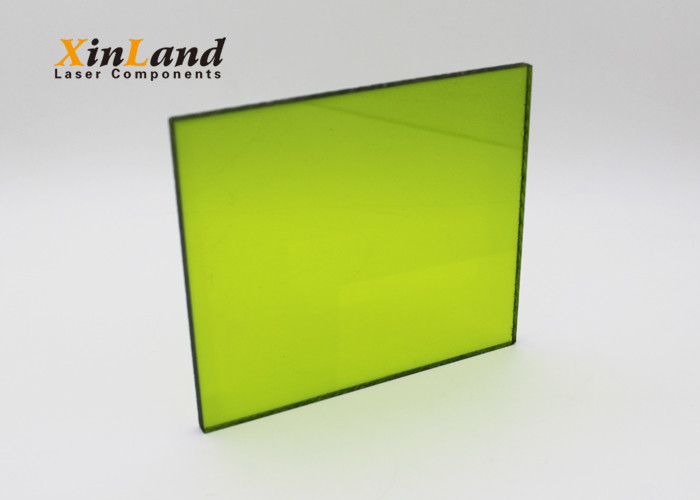

Product Photo:
