| Place of Origin: | China |
| Brand Name: | Xinland |
| Certification: | CE |
| Model Number: | XL4PW4D5T |

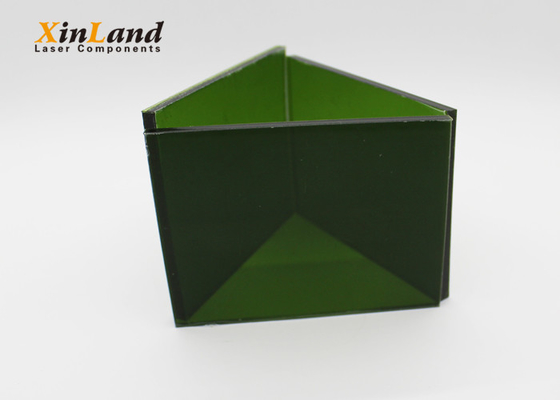

PMMA Material 190~450nm & 800~1700nm Laser Safety Viewing Windows
The Laser Safety Windows supplied by Xi’an Xinland International Co., Ltd are chosen from European’s superior PMMA material. Meanwhile, The Laser Safety Windows protection wavelength including 190~550nm, 580~750nm, 800~1100nm, 190~450nm, 10600nm and CO2 laser.
Spectrum Chart:
Technical Details:
| VLT | 35% |
| OD | 4+ |
| Wavelength | 190~450&800~1700nm |
| Size | 1280*1000*5mm |
| Package | 10pcs/carton |
| G.W | 80kg |
| Thickness | 5mm |
Notes:
1. The window's maximum size is 1280*1000*5mm,we can cut that for customer size,free cutting service
2. The laser safety window can extensively apply in laser industry manufacturing, range finding,aligning,medical treatment, etc.
Warranty:we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.
Payment Method: PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.
Laser Safety Window Catalog :
| Series NO. | Protection Wavelength | Dimension(mm) | OD |
| XL1PW4D3T | 190~550nm | 1280*1000*3.3mm | 4+ |
| XL1PW5D5T | 190~550nm | 1280*1000*5mm | 5+ |
| XL2PW4D5T | 580nm~750nm | 1280*1000*5mm | 5+ |
| XL3PW4D5T | 800~1100nm | 1280*1000*5mm | 4+ |
| XL3PW6D5T | 800~1100nm | 1280*1000*5mm | 6+ |
| XL3PW8D5T | 800~1100NM | 1280*1000*5mm | 8+ |
| XL3PW4GD5T | 190~540nm & 800~1100nm | 1280*1000*5mm | 4+ |
| XL4PW4D5T | 190~450nm & 800~1700nm | 1280*1000*5mm | 4+ |
| XL5PW4D5T | 190~420nm & 860~1300nm | 1280*1000*5mm | 4+ |
| XL6PW4D3T | 1064nm&10600nm | 1200*1000*3.3mm | 4+ |
| XL6PW5D5T | 1064nm&10600nm | 1200*1000*5mm | 5+ |
| XL6PW6D5T | 1064nm&10600nm | 1200*1000*5mm | 6+ |
| XL7PW4D5T | 10600nm | 1200*1000*5mm | 6+ |
Packing: Standard export carton packing.
Delivery time: 8-13 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
