Product Details:
|
| Keyword: | Laser Safety Sheet | Size: | 1280*1000mm |
|---|---|---|---|
| G.W: | 80kg | Package: | 10pcs/carton |
| Thickness: | 5mm | VLT: | 28% |
| High Light: | 1280*1000*5mm Laser Protection Window,1280*1000*5mm Laser Protection Sheet,PMMA Laser Protection Window |
||
Purple 405nm OD6+ Laser Protection Window 1280*1000*5mm Safety Sheet PMMA Material
The Laser Safety Windows supplied by Xi’an Xinland International Co., Ltd are chosen from European’s superior PMMA material. Meanwhile, The Laser Safety Windows are produced at high standard and precise formula according to the European CE and USA ANSI. The products are in high protection grade. They are produced without any optical distortion and flaw.
Technical details:
Visible light Transmittance:28%
Optical Density(OD): 4+
Thickness:5mm
MOQ: one whole sheet
| Dimension | 1280*1000*5mm |
| Packing | 10pcs/carton |
| G.W | 80kg |
| Protection Wavelength | 190~420nm&860~1300nm |
| Series NO. | Protection Wavelength | Dimension(mm) | OD |
| XL1PW4D3T | 190~550nm | 1280*1000*3.3mm | 4+ |
| XL1PW5D5T | 190~550nm | 1280*1000*5mm | 5+ |
| XL2PW4D5T | 580nm~750nm | 1280*1000*5mm | 5+ |
| XL3PW4D5T | 800~1100nm | 1280*1000*5mm | 4+ |
| XL3PW6D5T | 800~1100nm | 1280*1000*5mm | 6+ |
| XL3PW8D5T | 800~1100NM | 1280*1000*5mm | 8+ |
| XL3PW4GD5T | 190~540nm & 800~1100nm | 1280*1000*5mm | 4+ |
| XL4PW4D5T | 190~450nm & 800~1700nm | 1280*1000*5mm | 4+ |
| XL5PW4D5T | 190~420nm & 860~1300nm | 1280*1000*5mm | 4+ |
| XL6PW4D3T | 1064nm&10600nm | 1200*1000*3.3mm | 4+ |
| XL6PW5D5T | 1064nm&10600nm | 1200*1000*5mm | 5+ |
| XL6PW6D5T | 1064nm&10600nm | 1200*1000*5mm | 6+ |
| XL7PW4D5T | 10600nm | 1200*1000*5mm | 6+ |
Specstrogram:

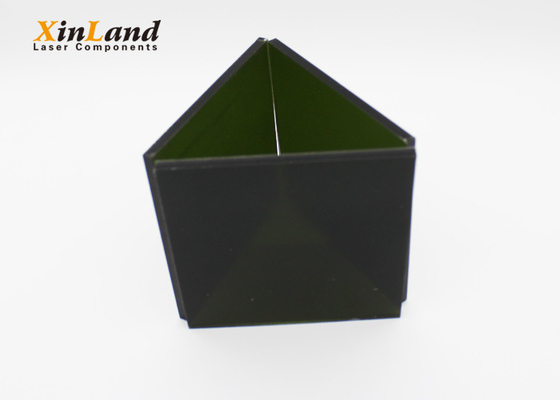

Product Photo:
Notes:
1. Xinland Laser Safety Window can protect various diffuse light safely and the laser and the glare of the particular waveband can be protected in all directions.
2. The laser safety window can extensively apply in laser industry manufacturing, range finding,aligning,medical treatment, etc.
Advantage: High quality with CE mark, from manufacture directly, with attractive price, fastest shipment in 3-7 days after confirm order.
Payment Method: PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.
Shipping Method: DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
Laser Safety Window Catalog:
