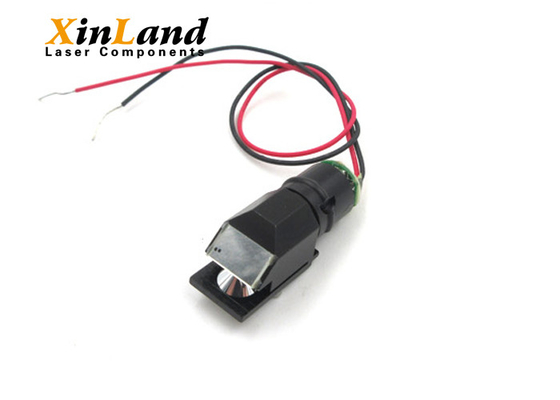

180 Degree 100mw 638nm Line Laser Generator For Research Lab

180 Degree 100mw 638nm Line Laser Generator For Research Lab

Product Details:
Place of Origin: China
Brand Name: Xinland
Certification: CE
Model Number: XL638L1032-100
Detail Information
Place of Origin:
China
Brand Name:
Xinland
Certification:
CE
Model Number:
XL638L1032-100
Wavelength:
638nm
Voltage:
DC3V-24V
Dimension:
10*31.8mm
Power:
100mw
Application:
Research And Lab Application
Material:
Aluminum
Accessories:
Power Adaptor And Mount
Beam Type:
Line
Highlight:

High Light

Highlight:

638nm Line Laser Generator

,

100mw 638nm Line Laser Generator

,

180 Degree 638nm Line Laser Generator

Trading Information
Minimum Order Quantity:
10pcs
Price:
Negotiated
Packaging Details:
1pc/anti-static bag
Delivery Time:
5-8 work days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
5000pcs per months
Product Description

180 deg. 100mw 638nm Line Laser Generator for Research and Lab Application

Specification:

Model #: XL638L1032-100
Wavlength: 638nm
Power: 100mw
Output Angle: >120°
Working distance: 1-2m
Line Length: 2-4m
Line Width: <1mm within 3 meter
Operating voltage: DC 3-5V
Dimension: 16X90MM
Operating Temperature: Normal temperature
Cooling mode: Natural cooling
Life time: >8000hours
Accessories: Mount and power supply
Warranty: 1 year



Product Name Working Voltage  Laser/Power Laser Dimension Working Range
180 degree Red Line Laser Generator  DC 3-4.5v 639nm / 100mW φ10*31.8mm

Indoor: 12 meter

Semi-indoor : 6 meter



Product Outline:



180 Degree 100mw 638nm Line Laser Generator For Research Lab 0



Beam Photo:



180 Degree 100mw 638nm Line Laser Generator For Research Lab 1

Quality assurance:

1. Vinner is equiped with world advanced computer driving production lines
2. Whole set of pure water processor line featured with RO anti-saturation and advanced testing devices
3. Manufactured in Class 100,000 Cleanroom
