Product Details:
|
| Optical Density: | 4+ | Dimension: | 1280x1000mm |
|---|---|---|---|
| G.W: | 80kg | Thickness: | 5mm |
| Package: | 10pcs/carton | Protect Wavelength: | 580~750nm |
| High Light: | 750nm Laser Protection Window,580nm Laser Protection Window,OD5+ PMMA Safety Sheet |
||
PMMA Safety Sheet 580~750nm Laser Protection Window OD5+
Product Description:
The Laser Safety Window are chosen from European's superior PMMA material, Xinland provides Laser Safety Windows for wavelength of 1064nm, 190~550nm, 580~750nm, 800~1100nm, 10600nm and CO2 laser.
Specifications:
| Optical Density(OD) | 5+ |
| Protection Wavelength | 580~750nm |
| Dimension | 1280*1000*5mm |
| Package | 10pcs/carton |
| G.W | 80kg |
| Thickness | 5mm |
Notes:
1. The window's maximum size is 1280*1000*5mm,we can cut that for customer size,free cutting service
2. The surface is not afraid of wear and tear, even if there is scratch, it does not affect the safety of light protection.
Laser Safety Window Catalog :
| Series NO. | Protection Wavelength | Dimension(mm) | OD |
| XL1PW4D3T | 190~550nm | 1280*1000*3.3mm | 4+ |
| XL1PW5D5T | 190~550nm | 1280*1000*5mm | 5+ |
| XL2PW4D5T | 580nm~750nm | 1280*1000*5mm | 5+ |
| XL3PW4D5T | 800~1100nm | 1280*1000*5mm | 4+ |
| XL3PW6D5T | 800~1100nm | 1280*1000*5mm | 6+ |
| XL3PW8D5T | 800~1100NM | 1280*1000*5mm | 8+ |
| XL3PW4GD5T | 190~540nm & 800~1100nm | 1280*1000*5mm | 4+ |
| XL4PW4D5T | 190~450nm & 800~1700nm | 1280*1000*5mm | 4+ |
| XL5PW4D5T | 190~420nm & 860~1300nm | 1280*1000*5mm | 4+ |
| XL6PW4D3T | 1064nm&10600nm | 1200*1000*3.3mm | 4+ |
| XL6PW5D5T | 1064nm&10600nm | 1200*1000*5mm | 5+ |
| XL6PW6D5T | 1064nm&10600nm | 1200*1000*5mm | 6+ |
| XL7PW4D5T | 10600nm | 1200*1000*5mm | 6+ |
1.We provide our customers with high quality product and top notch customer service at best price.
2.For all your inquires about us or our products, we will reply you in detail within 24 hours
3.We offer OEM services. Can print your own logo on product carton or stick label.
4.We have very experienced R&D engineers and we have strong ability to do ODM projects.
About Protect Eyes:
Lasers are more dangerous than most people understand, and your eyes are the most vulnerable to laser damage.
Too many people, accustomed to seeing lasers used as pointers, in movies and to put on exciting shows, don’t understand the danger. Used properly, lasers are useful for many applications, but everyone should learn how to protect their eyes, even from low power laser beams.
Therefore, we should reasonably apply laser protection products.

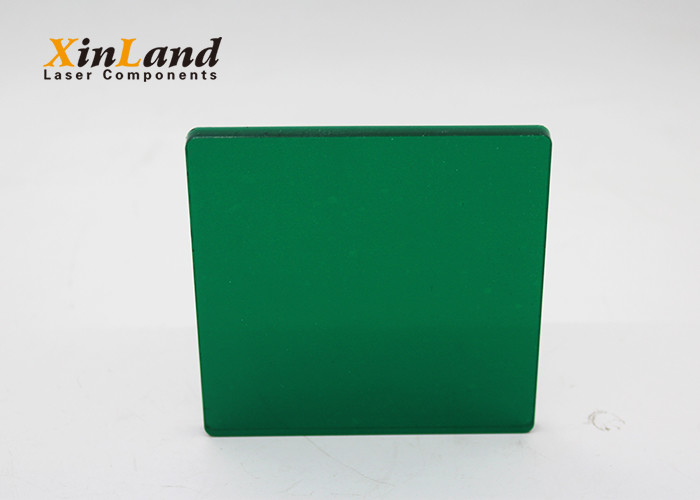

Product Photo:
