| Place of Origin: | China |
| Brand Name: | Xinland |
| Model Number: | 120W |
Designed for professional optical research and controlled engineering applications, this 120W 915nm laser system combines a Raycus laser source with a large 50× manually adjustable focusing assembly.
The optical configuration supports working distances from approximately 1 meter up to 20 meters under suitable conditions, providing greater focusing flexibility than standard compact laser systems.
A rechargeable battery system, coaxial red alignment beam and integrated thermal protection are incorporated into the portable cylindrical platform, making the system suitable for laboratories, engineering teams and professional research projects requiring a self-contained infrared laser source.
The system is built around a Raycus laser source with approximately 125W rated pump power and approximately 120W optical output.
Operating at 915nm, the primary near-infrared output provides a high-power optical platform for controlled research, engineering evaluation and specialized professional testing.
Electrical power consumption is approximately 240W.
The 50× focusing assembly is one of the defining features of this model.
A threaded rotary focusing mechanism allows trained operators to manually adjust the optical configuration according to the required working distance.
This provides greater flexibility for professional projects where the same laser system may need to be configured for different test distances.
Whenever the working distance changes, the optical focus should be readjusted.
Without the focusing lens, the system is primarily intended for shorter-distance setups of approximately 1 meter.
With the 50× focusing optics correctly adjusted, the recommended working range can extend from approximately 1 to 20 meters under suitable conditions.
Actual usable distance depends on:
Focus accuracy
Mounting stability
Atmospheric visibility
Battery condition
Optical alignment
Environmental conditions
For longer-distance applications, stable mounting becomes increasingly important.
For applications beyond approximately 8–10 meters, the system should be installed on a tripod, gimbal or other stable mounting platform.
At longer distances, even small movements of the main unit can produce significant changes in optical positioning.
A stable mounting system helps improve alignment repeatability and focus adjustment during controlled testing.
Because the primary 915nm output is not safely visible to the human eye, the system incorporates a visible red alignment beam positioned along the optical axis.
The red reference provides a convenient visual aid during preliminary system positioning and optical adjustment.
It is designed for alignment purposes only and does not function as a distance-measuring system.
Four protected 21700 lithium-ion cells provide power for the complete system.
The battery configuration includes an integrated protection board and supports charging currents up to 4A.
Battery Configuration
4 × protected 21700 lithium-ion cells
5000mAh capacity
Integrated battery protection
Up to 4A fast charging
Dedicated charger included
Battery endurance varies according to operating cycle, system temperature, battery condition and charging status.
Compared with lower-current charging configurations, the supported 4A charging system helps reduce preparation time between professional operating sessions.
This can be particularly useful for laboratory or engineering projects involving repeated testing over multiple sessions.
An integrated temperature-monitoring system helps protect the internal laser source from excessive heat.
When the internal temperature reaches approximately 45°C, optical output is automatically interrupted.
During testing at approximately 24°C ambient temperature, thermal protection typically activated after approximately 30–40 seconds of continuous operation from a completely cooled state.
Actual operating time varies with:
Ambient temperature
Initial system temperature
Previous operating cycles
Ventilation
Battery condition
For improved thermal stability and component life, shorter intermittent operating cycles are recommended.
For professional projects requiring longer operating periods, customized thermal-management options can be discussed.

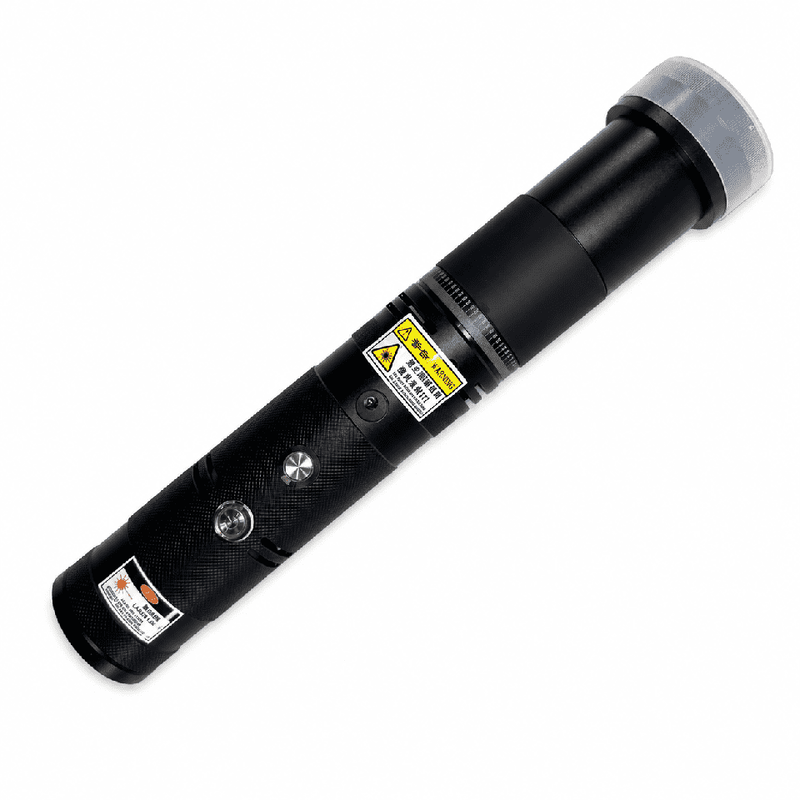

Despite the larger 50× focusing assembly, the main system maintains a relatively compact cylindrical form.
Main Unit Length: Approx. 36cm
Body Diameter: Approx. 6cm
Focusing Lens Diameter: Approx. 7cm
Gross Shipping Weight: Approx. 1.6kg
The portable architecture integrates the laser source, rechargeable power system and control electronics without requiring a separate external battery enclosure.
| Parameter | Specification |
|---|---|
| Optical Output Power | Approx. 120W |
| Pump Source Power | Approx. 125W |
| Laser Source | Raycus |
| Wavelength | 915nm |
| Electrical Consumption | Approx. 240W |
| Optical Configuration | Direct Output |
| Recommended Working Range | Approx. 1–20m* |
| Lens-Free Range | Approx. 1m |
| Focusing Optics | 50× Manual Adjustable Lens |
| Focus Adjustment | Threaded Rotary Mechanism |
| Alignment | Coaxial Red Reference Beam |
| Battery | 4 × Protected 21700 Cells |
| Battery Capacity | 5000mAh |
| Fast Charging | Up to 4A |
| Thermal Protection | Approx. 45°C |
| Typical Cold-Start Runtime | Approx. 30–40 sec at 24°C* |
| Main Unit Length | Approx. 36cm |
| Body Diameter | Approx. 6cm |
| Lens Diameter | Approx. 7cm |
| Gross Weight | Approx. 1.6kg |
*Actual performance depends on environmental conditions, optical adjustment, mounting stability and system status.
This 120W 915nm optical platform can be considered for controlled professional applications including:
Optical and photonics research
Laboratory experiments
Infrared system evaluation
Engineering testing
Material-response studies
Thermal-effect research
Industrial R&D
Technical demonstrations
Optical system development
Customized professional integration
The appropriate configuration should be selected according to working distance, operating environment and project requirements.
This configuration is particularly suitable for professional customers who require greater optical adjustment flexibility than a standard compact focusing system.
Extended Working-Distance Flexibility
The 50× optical assembly supports controlled setups across approximately 1–20m under suitable conditions.
Raycus Laser Source
A professional 120W Raycus source forms the core of the system.
Manual Precision Adjustment
The threaded focusing mechanism allows the optical setup to be adjusted according to actual working distance.
Integrated Rechargeable Power
Four protected 21700 cells provide a self-contained power solution.
4A Fast Charging
Higher-current charging reduces preparation time between operating sessions.
Coaxial Alignment
The visible red reference beam assists with professional setup and positioning.
A typical system includes:
120W 915nm laser main unit
50× adjustable focusing assembly
Rechargeable 21700 battery system
Fast battery charger
Related accessories
Package configuration can be adjusted according to B2B project requirements.
We supply professional laser systems for laboratories, research organizations, engineering companies, system integrators and distributors.
To help us recommend the appropriate configuration, please provide:
Application + Required Working Distance + Quantity + Destination Country + Special Requirements
Our team can provide technical specifications, available configuration options, B2B pricing and estimated lead time according to your project requirements.
Need a 120W 915nm laser system with extended focusing capability?
Send us your application, expected working distance and required quantity to receive:
Detailed technical specifications
Optical configuration information
B2B quotation
Accessory options
OEM information
Lead time
Shipping information
Tell us your working distance and project requirements to receive a recommended configuration and quotation.
This is a Class 4 high-power laser system intended exclusively for trained personnel operating in secured and controlled professional environments.
The 915nm output presents serious eye and skin hazards and is not safely visible to the human eye. Appropriate wavelength-rated protective eyewear, beam containment, restricted access and professional laser-safety procedures are required.
Never direct the system toward people, animals, vehicles, aircraft, roads, buildings, windows, reflective surfaces or public areas.
Purchasers and operators are responsible for compliance with applicable laser-safety and local regulatory requirements.
