| Place of Origin: | China |
| Brand Name: | Xinland |
| Model Number: | 500W |

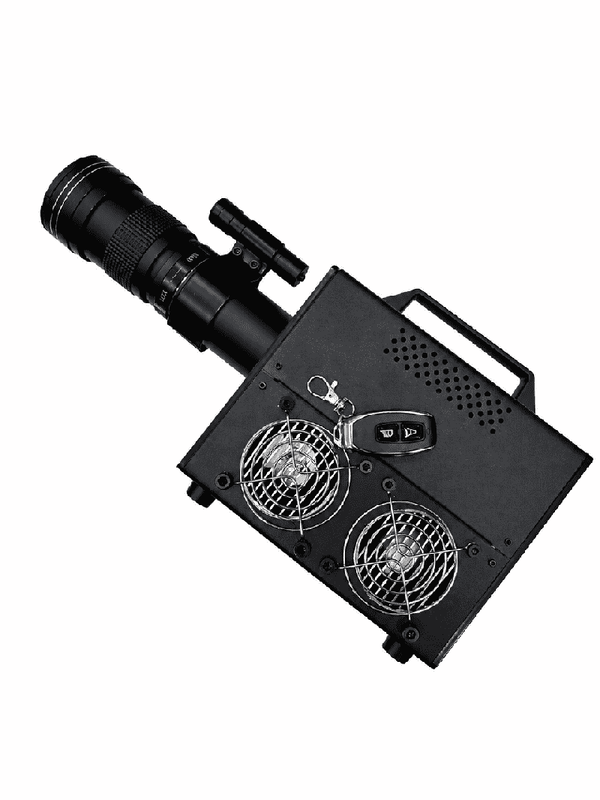

Designed for controlled ignition research and professional engineering applications, this 500W laser igniter combines a Raycus high-power laser source with a 48V 12Ah rechargeable power system and an off-axis visible alignment design.
The primary laser output operates at approximately 915nm, while a separate green reference beam provides visual assistance during professional setup and positioning.
Wireless remote control, manual focus adjustment and tripod-compatible construction make this system suitable for laboratories, combustion research, engineering evaluation and specialized B2B projects requiring a high-output laser ignition platform.
The system incorporates a professional Raycus laser source rated at 500W optical output.
With approximately 1000W electrical power consumption, this configuration provides substantially higher optical output than conventional 120W and 260W laser igniters.
It is intended for professional projects where high optical power is required within a secured and controlled operating environment.
The primary optical output operates at approximately 915nm.
This near-infrared wavelength is not safely visible to the human eye, making appropriate laser-safety controls essential during alignment, focusing and operation.
The main optical system uses a direct-beam output architecture with manually adjustable focusing.
One of the defining features of this 500W model is its non-coaxial, or off-axis, alignment architecture.
Instead of placing the visible reference beam directly on the same optical axis as the primary output, a separate green auxiliary laser provides a visual positioning reference.
This architecture provides trained operators with a convenient reference during controlled system setup.
Because the green reference and primary infrared output follow different optical paths, professional calibration is required to establish the appropriate relationship between the two.
The green alignment beam should therefore be treated as a setup aid rather than a direct representation of the primary beam position under every condition.
The system is supplied with a dedicated rechargeable battery pack designed to support portable professional operation.
Battery Voltage: 48V
Battery Capacity: 12Ah
Battery Weight: Approx. 4kg
The external battery architecture separates the power source from the main laser unit, providing greater flexibility when arranging a controlled laboratory or engineering setup.
A compatible battery charger is included with the standard configuration.
Two control methods are available.
Allows the system to be controlled from an appropriate position within a secured professional setup.
Provides direct local control when required by the experimental configuration.
The combination gives professional operators additional flexibility when designing laboratory and engineering test arrangements.
Remote operation does not replace appropriate interlocks, beam containment or other engineering safety controls.
The optical system incorporates manual focus adjustment.
This allows trained operators to configure the focal position according to the controlled experimental setup and working distance.
Focus should be checked whenever the optical arrangement or working distance changes.
Actual optical performance depends on factors including focus accuracy, mounting stability, system temperature, battery status and environmental conditions.
Thermal management is especially important for a 500W laser ignition system.
An internal monitoring system automatically interrupts optical output when the operating temperature reaches approximately 45°C.
At an ambient temperature of approximately 20°C, the typical cold-start operating cycle is around 55 seconds before thermal protection activates.
Actual operating duration varies according to:
Ambient temperature
Initial system temperature
Previous operating cycles
Battery condition
Ventilation
Optical configuration
For routine professional operation, shorter controlled cycles with sufficient cooling intervals are recommended.
The main laser unit weighs approximately 4.5kg.
A tripod is included with the standard package to provide a stable mounting platform during controlled professional use.
Stable mounting is particularly important when performing optical alignment and repeatable laboratory testing.
For customized installations, alternative mounting solutions can be discussed according to project requirements.
| Parameter | Specification |
|---|---|
| Product Type | Professional Laser Igniter |
| Model | XL140H500 |
| Rated Optical Power | 500W |
| Laser Source | Raycus |
| Main Wavelength | Approx. 915nm |
| Electrical Power | Approx. 1000W |
| Optical Output | Direct Beam |
| Alignment Architecture | Non-Coaxial / Off-Axis |
| Alignment Beam | Separate Green Reference Laser |
| Focus Adjustment | Manual |
| Battery | Rechargeable External Battery Pack |
| Battery Voltage | 48V |
| Battery Capacity | 12Ah |
| Battery Weight | Approx. 4kg |
| Main Unit Weight | Approx. 4.5kg |
| Control | Wireless Remote + Physical Button |
| Thermal Protection | Automatic Cut-Off at Approx. 45°C |
| Typical Cold-Start Cycle | Approx. 55 sec at 20°C* |
| Mounting | Tripod Compatible |
*Actual operating duration depends on environmental temperature, battery status, ventilation and previous operating cycles.
A standard system includes:
500W laser igniter main unit
Adjustable optical lens
48V 12Ah rechargeable battery
Battery charger
Wireless remote control
Tripod
For B2B or OEM orders, final package configuration can be discussed according to project requirements.
This 500W laser ignition platform can be considered for controlled professional applications including:
Laser ignition research
Combustion experiments
Optical ignition studies
Laboratory research
Thermal-response evaluation
Material-response research
Engineering testing
Industrial R&D
Scientific demonstrations
Professional system integration
Application suitability should be evaluated according to the intended test environment, optical requirements and applicable laser-safety regulations.
This model is particularly suitable for professional customers who require a separate visible alignment architecture.
500W Raycus Source
Provides high optical output for demanding professional ignition research.
915nm Primary Output
Near-infrared direct-beam optical architecture.
Off-Axis Green Alignment
A separate visible reference path supports professional positioning and calibration.
48V 12Ah Battery
External rechargeable power architecture provides flexible equipment placement.
Dual Control Methods
Wireless remote and physical control options support different professional setups.
Tripod Mounting
The supplied support provides a stable platform for controlled operation.
Different 500W configurations are available for different professional requirements.
Choose an off-axis alignment model when your project specifically requires a separate visible reference path and flexible optical calibration.
Choose a coaxial alignment configuration when the visible reference and primary optical path need a different alignment architecture.
Split-type and other power configurations may also be available depending on project requirements.
Tell us your application before ordering and we can provide the relevant configuration information.
We support professional customers including:
Research laboratories
Combustion research teams
Engineering companies
Universities and research organizations
Industrial R&D departments
Equipment distributors
Optical system integrators
OEM project customers
For a B2B quotation, please provide:
Application + Required Quantity + Operating Requirements + Destination Country
For OEM projects, you can also provide requirements for system configuration, mounting, labeling, branding, packaging and accessories.
Looking for a professional 500W 915nm laser igniter?
Contact us to receive:
Detailed technical specifications
Available configurations
B2B pricing
Battery information
Optical configuration options
OEM support
Lead time
Shipping information
Send us your application and required quantity to receive technical information and a project quotation.
This is an extremely high-power professional laser ignition system intended exclusively for qualified personnel operating in secured laser-controlled environments.
The approximately 915nm primary output is not safely visible and direct or reflected exposure can cause severe and permanent eye injury, skin injury and fire.
Appropriate wavelength-rated protective eyewear, controlled access, beam containment, suitable beam stops, interlocks and fire-control procedures are required.
Because the visible green alignment beam follows a separate optical path, it must not be assumed to indicate the exact primary-beam position without professional calibration.
Never direct the system toward people, animals, aircraft, vehicles, roads, buildings, windows, public areas or uncontrolled reflective surfaces.
Purchasers and operators are responsible for compliance with applicable laser-safety, battery, electrical and local regulatory requirements.
