| Place of Origin: | China |
| Brand Name: | Xinland |
| Model Number: | 500W |

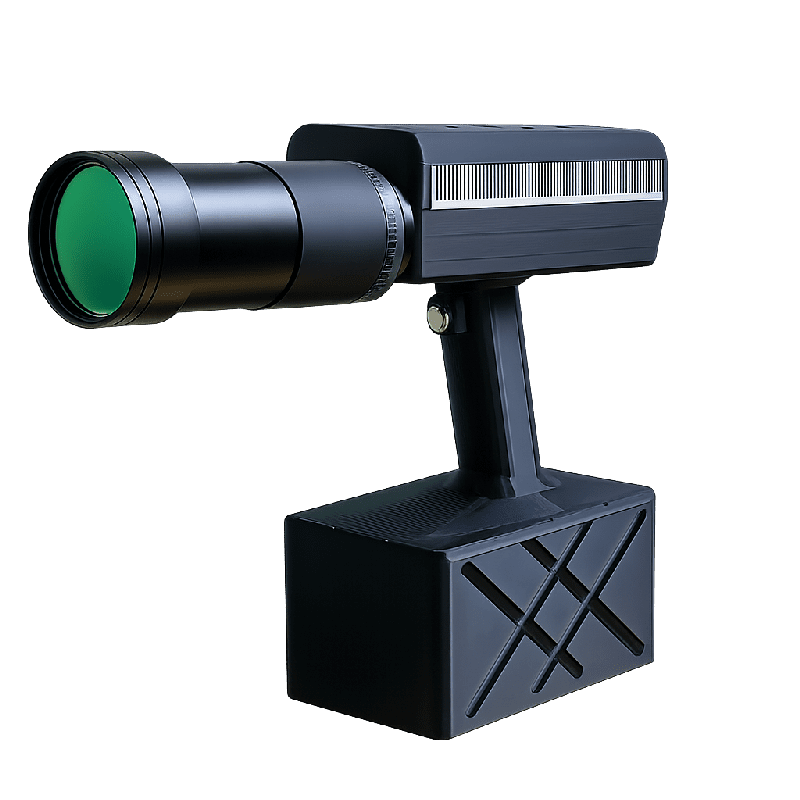

This 500W integrated laser igniter combines a high-power Raycus laser source, rechargeable battery system, coaxial visible alignment and control electronics within a compact professional platform.
Unlike split-type laser ignition systems that require a separate external power pack, this model incorporates a 46.2V 10Ah rechargeable battery directly into the main unit. The integrated architecture reduces external wiring and simplifies equipment preparation, transportation and storage.
With 500W optical output, direct-beam configuration and adjustable focusing optics, the system is designed for professional laser ignition research, combustion experiments, laboratory evaluation and controlled engineering applications.
The system is built around a professional Raycus laser source delivering up to 500W optical output.
This places the system above conventional 120W and 260W laser igniters and provides a high-output optical platform for demanding professional ignition and combustion-related research.
The direct-beam architecture provides a straightforward optical path, while the focusing assembly allows the system to be configured according to the controlled experimental setup.
One of the main advantages of this model is its all-in-one power architecture.
A rechargeable battery pack is integrated directly into the main housing, eliminating the need to position and connect a separate external battery during normal operation.
The battery system features:
46.2V operating voltage
10Ah capacity
22-cell power-battery architecture
Up to 1600W maximum discharge power
Dedicated matching charger
For professional users, this integrated configuration helps simplify equipment preparation and reduces the number of separate components required at the test site.
Different professional projects require different equipment layouts.
A split-type system can be useful when independent battery placement and modular installation are priorities.
This integrated 500W configuration is better suited to projects where customers value:
Fewer external cables
Faster equipment preparation
Self-contained power architecture
Easier equipment transportation
Simplified accessory management
Compact professional setup
For customers comparing different 500W configurations, both integrated and external-power architectures can be evaluated according to project requirements.
A visible green reference beam is integrated coaxially with the optical system to assist with controlled setup and preliminary positioning.
Compared with non-coaxial configurations, the coaxial architecture provides a different alignment arrangement for professional optical setup.
The visible reference beam is intended only as an alignment aid and should never be treated as a substitute for professional laser-safety procedures.
The system is supplied with a focusing lens for optical adjustment according to the controlled experimental configuration.
Focus should be checked whenever the optical setup or working conditions change.
Actual optical performance depends on multiple factors, including:
Focus adjustment
Optical alignment
System temperature
Battery condition
Environmental conditions
Experimental configuration
For project-based orders, optical requirements can be discussed before final configuration.
High-power laser ignition systems generate substantial heat during operation.
An integrated temperature-monitoring system provides automatic thermal protection, with protection activating at approximately 45°C.
Under normal ambient conditions, typical continuous operation from a completely cooled state is approximately 40 seconds before thermal protection may activate.
Actual operating duration varies according to ambient temperature, initial system temperature, previous operating cycles, ventilation and battery condition.
For routine professional use, shorter controlled operating cycles with sufficient cooling intervals are recommended.
Despite incorporating the rechargeable battery directly into the system, the main unit weighs approximately 3.5kg.
This makes it considerably easier to transport than systems requiring both a separate laser unit and a large external battery pack.
A protective carrying case is supplied for organized transportation and storage.
Main Unit Weight: Approx. 3.5kg
Carrying Case Size: Approx. 45 × 33 × 16cm
Total Shipping Weight: Approx. 5.4kg
A remote control is included as part of the standard equipment package.
Remote operation provides additional flexibility when arranging the system within a secured professional environment.
It is particularly useful when the equipment needs to be controlled without remaining immediately beside the main unit.
Remote control does not replace engineering safety controls such as restricted access, interlocks, beam containment and appropriate protective equipment.
| Parameter | Specification |
|---|---|
| Product Type | Integrated Laser Igniter |
| Optical Output Power | 500W |
| Laser Source | Raycus |
| Optical Output | Direct Beam |
| Alignment | Coaxial Green Reference Light |
| Power Architecture | Integrated Rechargeable Battery |
| Battery Voltage | 46.2V |
| Battery Capacity | 10Ah |
| Battery Type | 22-Cell Power Battery |
| Maximum Battery Discharge | Approx. 1600W |
| Focusing | Adjustable Focusing Lens |
| Thermal Protection | Approx. 45°C |
| Typical Cold-Start Cycle | Approx. 40 sec* |
| Main Unit Weight | Approx. 3.5kg |
| Carrying Case | Approx. 45 × 33 × 16cm |
| Shipping Weight | Approx. 5.4kg |
| Remote Control | Included |
| Battery Charger | Included |
*Actual operating duration depends on ambient temperature, battery condition, ventilation and previous operating cycles.
This model is supplied as a complete professional equipment package rather than only a standalone laser body.
The standard configuration includes:
500W integrated laser igniter
Adjustable focusing lens
Integrated 46.2V 10Ah battery
Wireless remote control
Protective carrying case
Battery charger
Power adapter
Providing the primary components together simplifies equipment inspection, storage and preparation for professional projects.
This 500W integrated laser ignition platform can be considered for controlled applications including:
Laser ignition research
Combustion experiments
Optical ignition studies
Laboratory research
Thermal-response studies
Material-response research
Engineering evaluation
Industrial R&D
Scientific demonstrations
Professional system integration
Application suitability should be evaluated according to the intended operating environment, optical requirements and applicable laser-safety regulations.
The 46.2V 10Ah battery is incorporated directly into the main system.
Provides high optical output for professional laser ignition research.
A visible reference beam assists with controlled optical setup.
The integrated configuration eliminates the need to transport a separate external battery pack.
A protective case keeps the main unit and accessories organized during transportation and storage.
Provides additional flexibility when configuring a secured professional operating environment.
We offer different 500W laser ignition architectures for different professional requirements.
Choose this Integrated 500W Version when portability, fewer external connections and a self-contained battery system are important.
A Split-Type 500W Version may be more appropriate when independent battery placement and modular equipment installation are priorities.
An Off-Axis Alignment Version can be considered when the project requires a separate visible alignment architecture.
Tell us your application and preferred system architecture, and we can provide the relevant configuration information.
We support professional customers including research laboratories, engineering companies, combustion research teams, universities, industrial R&D departments, distributors and system integrators.
For a B2B quotation, please provide:
Application + Required Quantity + Operating Requirements + Destination Country
For project and OEM orders, requirements related to configuration, branding, packaging and accessories can also be discussed.
Looking for a professional 500W integrated laser igniter?
Contact us to receive:
Detailed technical specifications
B2B pricing
Battery information
Available optical configurations
OEM options
Accessory information
Lead time
Shipping information
Send us your application and required quantity to receive technical information and a project quotation.
This is an extremely high-power professional laser ignition system intended exclusively for qualified personnel working in secured laser-controlled environments.
Direct or reflected laser exposure can cause severe and permanent eye injury, skin injury and fire. Appropriate wavelength-rated protective eyewear, controlled access, beam containment, suitable beam stops, interlocks and fire-control measures are required.
Never direct the system toward people, animals, vehicles, aircraft, roads, buildings, windows, public areas or uncontrolled reflective surfaces.
Only approved charging equipment should be used with the integrated battery system.
Purchasers and operators are responsible for compliance with applicable laser-safety, battery, electrical, transportation and local regulatory requirements.
