Product Details:
|
Type: | CW | Wavelength: | 808nm |
---|---|---|---|
Power: | 5w | Package: | 2-pin Package |
Highlight: | 105um Fiber Coupled Laser Diode,200um Fiber Coupled Laser Diode,200um 808nm Laser Diode |

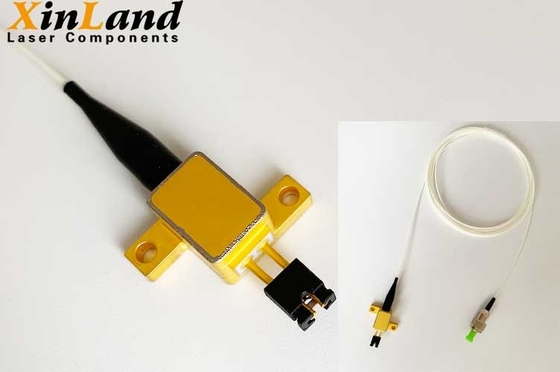

4W @ 808nm FC Lens Multimode Fiber Coupled Laser Diode
808nm~810nm 5W Fiber Coupled Diode Laser Module with 105um or 200um Multi- mode Fiber | 808nm 5W Diode Laser Module for Medical |2-Pin Package| 105um, 200um Fiber Core| High Power LD XL 808-005-M-H2
Technical Parameter
Min. | Type | Max. | |
Central Wavelength (@25 deg.C) | +-3nm | 808nm | +-10nm |
Spectral Width (FWHM) | ----- | 3nm | ----- |
Output power | ------ | 5w | ------ |
Temperature coefficient of wavelength | 0.3nm/deg.c | ||
Threshold Current (Typ.) | 1.0A |
||
Operating Current (Typ.) |
5.7A | ||
Operating Voltage | 1.9V | ||
Slope Efficiency | 1.1W/A | ||
Fiber Core Diameter | 105um (200um optional) | ||
Fiber Numerical Aperture | 0.22 | ||
Fiber Length | 100cm | ||
Connector Type | FC(SMA905 Optional ) | ||
Package Style TEC Cooling |
2-pin |
2-Pin Package Overview:
