Product Details:
|
| Type:: | Mini Laser Diode | Place Of Origin:: | Xi’an Shaanxi China |
|---|---|---|---|
| Brand Name:: | XINLAND | Model Number:: | GH06330A2G |
| Package Type:: | Through Hole Package | Po(mW) Max:: | 30MW |
| Top(C):: | -10-60 | Po(mW) Min:: | 30MW |
| Highlight: | GH06330A2G Mini Laser Diode,635nm Mini Laser Diode,638nm red laser diode |
||

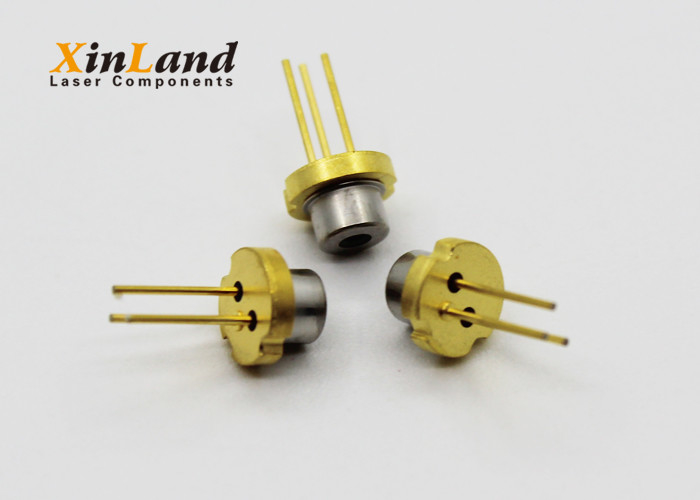

GH06330A2G Mini Laser Diode 635nm~638nm Through Hole Package
The industrial laser modules use high quality laser diode with special designed collimating lens and high stable driven circuit (APC). The characteristics are high reliability, long life span (>10,000hrs), and high stability.
Quick Details
Place of Origin:Xi’an Shaanxi China
Brand Name:XINLAND
Model Number:GH06330A2G
Type:Laser Diode
Package Type:Through Hole
po(mW) max:30MW
Top(C):-10-60
po(mW) min:30MW
Ith(mA):30mA
Iop(mA):50mA
Vop(v):2.3V
Supply Ability
Supply Ability:10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Detailselectrostatic bag
Port:Xi’an Shaanxi China
Lead Time :
| Quantity(Pieces) | 1 - 500 | >500 |
| Est. Time(days) | 5 | To be negotiated |
echnical Parameter
| Min. | Type | Max. | |||
| Central Wavelength (@25 deg.C) | 630nm | 638nm | 645nm | ||
| Spectral Width (FWHM) | ----- | 2.0nm | ----- | ||
| Output power | ------ | 1.0w | ------ | ||
| Recommended Operating Temperature | 25°C | ||||
| Beam Divergence (FWHM) | 23°┴ x 2°// | 35°┴ x 7.5°// | 45°┴ x 20°// | ||
| Slope Efficiency | ----- | 1.0W/A | -------- | ||
| Threshold Current (Typ.) | ---- | 0.3A | 0.5A | ||
| Operating Current (Typ.) | ------- | 1.4A | 1.6A | ||
| Operating Voltage | ------- | 2.4V | 2.8V | ||
| Package Style | TO5 | ||||
Electrically shorten LD module and store in non-extreme conditions. Suggest using the constant current power supply.
