Product Details:
|
Place Of Origin:: | Xi'an Shaanxi | Wavelength: | 405nm |
---|---|---|---|
Output Power: | 10-300mW | Mode Type: | SM |
Laser Type: | FP | Package Type:: | TO18/TO38 |
Highlight: | 300mW 405nm Blue Laser Diode,10mW 405nm Blue Laser Diode,300mW 405nm Laser Diode Purple |

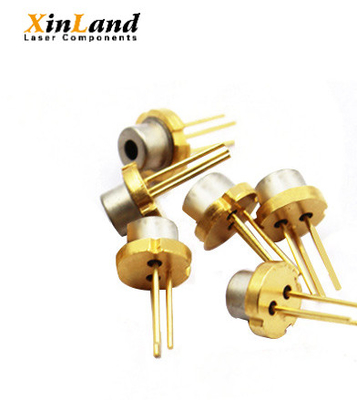

Factory Wholesale Blue Laser Diode High Quality Laser Diodes Blue Purple Light Dedicated to Laser Modules
Product Usage:
Product Specifications:
Wavelength | Part Number | Output Power | Mode Type | Laser Type | Package | PD | FAC |
405nm | XLD-405-010m-1-PD | 10mW | SM | FP | TO18 | √ | × |
XLD-405-150m-1(3.8mm) | 150mW | SM | FP | TO38 | × | × | |
XLD-405-150m-1(5.6mm) | 150mW | SM | FP | TO18 | × | × | |
XLD-405-200m-1 | 200mW | SM | FP | TO38 | × | × | |
XLD-405-250m-1 | 250mW | SM | FP | TO18 | × | × | |
XLD-405-300m-1(SM) | 300mW | SM | FP | TO18 | × | × |
Light Emission from a Laser Diode:
Precautions:
1. This component is sensitive to static electricity. Do not touch the laser tube body directly with your hands without taking anti-static measures.
2. This product must have a qualified drive circuit to work normally, the voltage of different power is the same, but the working current is different.
3. The driving current of the circuit to the tube needs to be controlled within a safe range, otherwise it will affect the life.
4. The laser tube should be stored or worked in a dry environment to prevent condensation, which will damage the laser tube.
