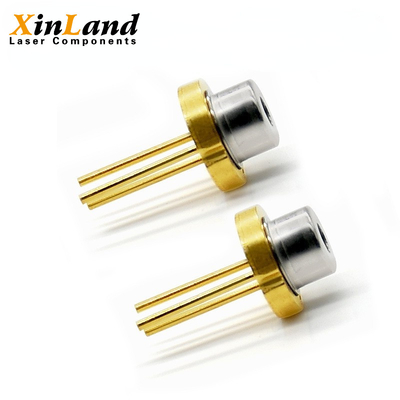

520nm 50mw Green Laser Diode For Laser Scribe Positioning Laser Head

Name: 520nm 50mw Green Laser Diode For Laser Scribe Positioning Laser Head
Brand: XINLAND LASER CO.,LTD
SKU: XLD-520-050m-1 Laser Diode
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XINLAND
Certification:	CE
Model Number:	XLD-520-050m-1 Laser Diode

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XINLAND

Certification:

Model Number:

XLD-520-050m-1 Laser Diode

Type:

Laser Diode

Wavelength:

520nm

Output Power:

50mW

Package Type::

TO38

Laser Color:

Green

Material:

Semiconductor

Highlight:

High Light

Highlight:

Green Laser Diode For Laser Scribe

520nm 50mw Green Laser Diode

520nm 50mw green laser diode module

Trading Information

Minimum Order Quantity:

100pcs

Price:

Negotiated

Packaging Details:

1pcs/polybag,10pcs/inner box,100pcs/ctn

Delivery Time:

7 days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Dozen/Dozens per Day

Product Description

Factory Wholesale Fiber Coupled 520nm 10mW Green Laser Diode Hot Selling Small Laser Diodes

Product Details:

Model Number: XLD-520-050m-1

Type:Laser Diode

Power:50mW

Wavelength:520nm

Package Type: TO38

Laser Color: Green

Temperature Control for Laser Diodes:

Since many parameters depend on the temperature of the laser diode, it is important to set and maintain a stable temperature using a thermo-electric temperature controller.
Most laser diode applications use Thermoelectric (TE) coolers based on the Peltier Effect to maintain a constant temperature. TE modules are semiconductor “heat pumps” that move heat from one side of the device to the other. Depending on the direction the current flows through the TE cooler, you can either heat or cool a laser diode.

520nm 50mw Green Laser Diode For Laser Scribe Positioning Laser Head 0

Product Specifications:

Wavelength	Part Number	Output Power	Mode Type	Laser Type	Package	PD	FAC
520nm	XLD-520-010m-1-PD	10mW	SM	FP	TO18	√	×
	XLD-520-050m-1	50mW	SM	FP	TO38	×	×
	XLD-520-050m-1-PD	50mW	SM	FP	TO18	√	×
	XLD-520-080m-1	80mW	SM	FP	TO38	×	×
	XLD-520-080m-1-PD	80mW	SM	FP	TO18	√	×

Several types of temperature sensors are used: thermistors, I.C. sensors, and platinum resistive temperature devices (RTDs). The most commonly used is the thermistor because of its small size and fast response time. Thermistors and RTDs are nonlinear resistance devices. Both require a small accurate current source to bias them. Changes in temperature result in resistance changes, with the voltage drop across the device proportional to temperature. Each device has a characteristic equation that converts resistance to temperature.

520nm 50mw Green Laser Diode For Laser Scribe Positioning Laser Head 1
