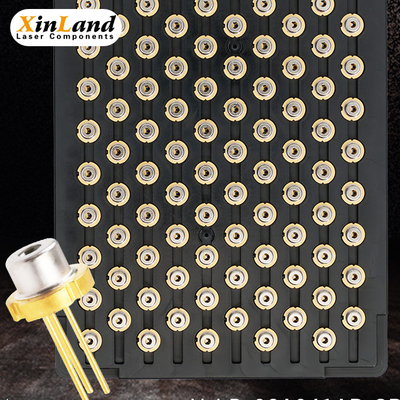

850nm 50mW Mini Laser Diode With PD IR Infrared Laser Diode TO18 Φ5.6mm Through Hole

Name: 850nm 50mW Mini Laser Diode With PD IR Infrared Laser Diode TO18 Φ5.6mm Through Hole
Brand: XINLAND LASER CO.,LTD
SKU: LD-850-050m-1-PD Laser Diode
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XINLAND
Certification:	CE
Model Number:	LD-850-050m-1-PD Laser Diode

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XINLAND

Certification:

Model Number:

LD-850-050m-1-PD Laser Diode

Type:

Laser Diode

Sealed:

TO18

Wavelength:

850nm

Output Power:

50mW

Color:

Infrared

Package Type:

Through Hole

Highlight:

High Light

Highlight:

850nm 50mW Mini Laser Diode

TO18 5.6mm Mini Laser Diode

850nm 50mW Infrared Laser Diode

Trading Information

Minimum Order Quantity:

100pcs

Price:

Negotiated

Packaging Details:

1pcs/polybag,10pcs/inner box,100pcs/ctn

Delivery Time:

7 days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Dozen/Dozens per Day

Product Description

Mini Laser Diode 850nm 50mW With PD IR Infrared Laser Diode TO18 Φ5.6mm Through Hole

Product Details:

Model Number: XLD-850-050m-1-PD

Type: Infrared Laser Diode

Power: 50mW

Wavelength: 850nm

Package Type: TO18

Laser: Infrared Laser

Normal camera shooting effect:

850nm 50mW Mini Laser Diode With PD IR Infrared Laser Diode TO18 Φ5.6mm Through Hole 0

Product Specifications:

Wavelength	Part Number	Output Power	Mode Type	Laser Type	Package	PD	FAC
850nm	XLD-850-050m-1-PD	50mW	SM	FP	TO18	√	×

Tips:

The methods that can be used when the working parameters exceed the maximum allowable value are as follows:

(1) Drive the laser diode with a DC constant current source.

(2) Connect a current-limiting resistor in series with the laser diode circuit and a bypass capacitor in parallel.

(3) As the temperature of the laser diode increases, the current value flowing through it will increase, so necessary heat dissipation measures must be taken to ensure that the device works within a certain temperature range.

(4) In order to avoid the breakdown and damage of the laser diode due to the excessive reverse voltage, fast silicon diodes can be connected in anti-parallel at both ends of the laser diode.

850nm 50mW Mini Laser Diode With PD IR Infrared Laser Diode TO18 Φ5.6mm Through Hole 1

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
