Home > products >

880nm 8W 1064nm 8W/10W Laser Diode Factory Direct Sale E-Mount/H-Mount Package High Power semiconductor lasers

Name: 880nm 8W 1064nm 8W/10W Laser Diode Factory Direct Sale E-Mount/H-Mount Package High Power semiconductor lasers
Brand: XINLAND LASER CO.,LTD
SKU: XLD-880/XLD-1064 Laser Diode
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XINLAND
Certification:	CE
Model Number:	XLD-880/XLD-1064 Laser Diode

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XINLAND

Certification:

Model Number:

XLD-880/XLD-1064 Laser Diode

Place Of Origin:

Xi'an Shaanxi

Wavelength:

880nm/1064nm

Output Power:

8W, 8W/10W

Package Type:

E-Mount/H-Mount

FAC:

Optional

Mode Type:

Multimode

Trading Information

Minimum Order Quantity:

100pcs

Price:

Negotiated

Packaging Details:

1pcs/polybag,10pcs/inner box,100pcs/ctn

Delivery Time:

7 days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Dozen/Dozens per Day

Product Description

880nm 8W 1064nm 8W/10W Laser Diode Factory Direct Sale E-Mount/H-Mount Package High Power Semiconductor Lasers
Laser Diode Widely Used:

Laser marking technology is one of the largest application areas of laser processing. Laser marking is a marking method that uses high-energy-density lasers to locally irradiate the workpiece to vaporize or change the color of the surface material, thereby leaving a permanent mark.
Laser marking can produce a variety of characters, symbols and patterns, etc., and the size of the characters can range from millimeters to micrometers, which is of special significance to the anti-counterfeiting of products. All-solid-state ultraviolet band laser marking is a new technology developed in recent years. It is especially suitable for metal marking and can achieve sub-micron marking. It has been widely used in the microelectronics industry and biological engineering.

Product Specifications:

Wavelength	Part Number	Output Power	Mode Type	Laser Type	Package	PD	FAC
880nm	XLD-880-003-C	3W	MM	FP	C-mount	×	○
	XLD-880-003-3	3W	MM	FP	TO3	×	○
	XLD-880-003-E	3W	MM	FP	E-mount	×	○
	XLD-880-003-H	3W	MM	FP	H-mount	×	○
	XLD-880-008-E	8W	MM	FP	E-mount	×	○
	XLD-880-008-H	8W	MM	FP	H-mount	×	○

1064nm	XLD-1064-008-E	8W	MM	FP	E-mount	×	○
	XLD-1064-008-H	8W	MM	FP	H-mount	×	○
	XLD-1064-010-E	10W	MM	FP	E-mount	×	○
	XLD-1064-010-H	10W	MM	FP	H-mount	×	○

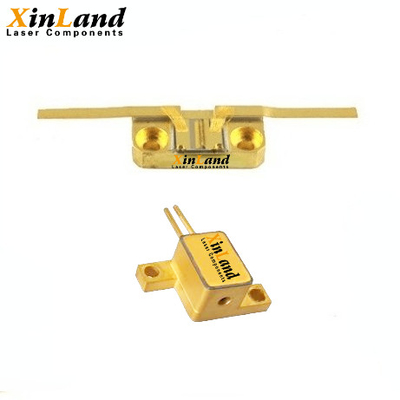

Package Type:

880nm 8W 1064nm 8W/10W Laser Diode Factory Direct Sale E-Mount/H-Mount Package High Power semiconductor lasers 0

880nm 8W 1064nm 8W/10W Laser Diode Factory Direct Sale E-Mount/H-Mount Package High Power semiconductor lasers 1
