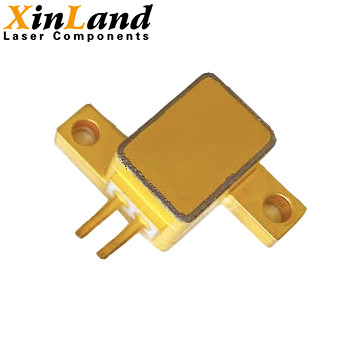

1900nm/1920nm 700mW Infrared Fiber Mini Laser Diode Laser Rangefinder Confocal

Name: 1900nm/1920nm 700mW Infrared Fiber Mini Laser Diode Laser Rangefinder Confocal
Brand: XINLAND LASER CO.,LTD
SKU: XLD-1900/XLD-1920 Laser Diode
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XINLAND
Certification:	CE
Model Number:	XLD-1900/XLD-1920 Laser Diode

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XINLAND

Certification:

Model Number:

XLD-1900/XLD-1920 Laser Diode

Place Of Origin:

Xi'an Shaanxi

Wavelength:

1900nm/1920nm

Output Power:

700mW

Package Type:

TO3/C-Mount/E-Mount/H-Mount

FAC:

Optional

Laser Type:

Infrared Laser

Trading Information

Minimum Order Quantity:

100pcs

Price:

Negotiated

Packaging Details:

1pcs/polybag,10pcs/inner box,100pcs/ctn

Delivery Time:

7 days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Dozen/Dozens per Day

Product Description

1900nm/1920nm 700mW Infrared Fiber Mini Laser Diode Laser Rangefinder Confocal
Product Details:

Introduced high-quality 1900nm and 1920nm multi-mode laser diodes for medical, life science, and sensing applications, and can provide TO3, C-MOUNT, E-MOUNT, H-MOUNT packages, etc. At the same time, it provides spot shaping services. After the fast axis of the spot is compressed, the spot can be square or linear to meet different customer use scenarios.

Product Specifications:

Wavelength	Part Number	Output Power	Mode Type	Laser Type	Package	PD	FAC
1900nm	XLD-1900-700m-C	700mW	MM	FP	C-mount	×	○
	XLD-1900-700m-3	700mW	MM	FP	TO3	×	○
	XLD-1900-700m-E	700mW	MM	FP	E-mount	×	○
	XLD-1900-700m-H	700mW	MM	FP	H-mount	×	○
1920nm	XLD-1920-700m-C	700mW	MM	FP	C-mount	×	○
	XLD-1920-700m-3	700mW	MM	FP	TO3	×	○
	XLD-1920-700m-E	700mW	MM	FP	E-mount	×	○
	XLD-1920-700m-H	700mW	MM	FP	H-mount	×	○
