| Place of Origin: | Xi'an Shaanxi China |
| Brand Name: | XINLAND |
| Certification: | CE |
| Model Number: | XLP-405 Single Mode Fiber Coupled Laser Diode |

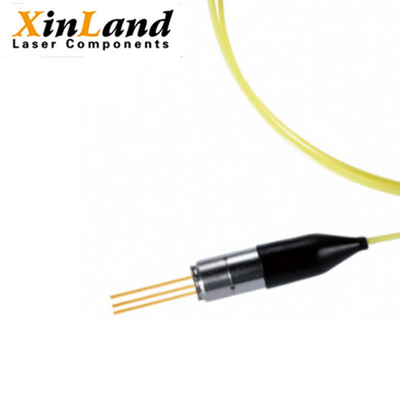

405nm Fiber Coupled Laser Diode with PD TEC Optional SMF 3um Fiber Core Coaxial/8-Pin Package
Product Details:
Model Number: XLP-405 (PD,TEC Optional)
Type: Fiber Coupled Laser Diode
Wavelength: 405nm
Fiber Type: SMF
Fiber Core: 3um
Package Type: Coaxial/8-Pin
Connector: FC/SMA
Product Specifications:
| Wavelength | Part Number | Output Power | Fiber Type | Fiber Core | Package | Connector | PD | TEC |
| 405nm | XLP-405-001m-4-PD | 1mW | SMF | 3um | Coaxial | FC/SMA | √ | × |
| XLX-405-001m-4-H8-T-PD | 1mW | SMF | 3um | 8-Pin | FC/SMA | √ | √ | |
| XLP-405-015m-4 | 15mW | SMF | 3um | Coaxial | FC/SMA | × | × | |
| XLX-405-015m-4-H8-T | 15mW | SMF | 3um | 8-Pin | FC/SMA | ○ | √ | |
| XLP-405-030m-4 | 30mW | SMF | 3um | Coaxial | FC/SMA | × | × | |
| XLX-405-030m-4-H8-T | 30mW | SMF | 3um | 8-Pin | FC/SMA | ○ | √ | |
| XLP-405-050m-4 | 50mW | SMF | 3um | Coaxial | FC/SMA | × | × | |
| XLX-405-050m-4-H8-T | 50mW | SMF | 3um | 8-Pin | FC/SMA | ○ | √ | |
| XLP-405-080m-4 | 80mW | SMF | 3um | Coaxial | FC/SMA | × | × | |
| XLX-405-080m-4-H8-T | 80mW | SMF | 3um | 8-Pin | FC/SMA | ○ | √ | |
| XLP-405-100m-4 | 100mW | SMF | 3um | Coaxial | FC/SMA | × | × | |
| XLX-405-100m-4-H8-T | 100mW | SMF | 3um | 8-Pin | FC/SMA | ○ | √ | |
| XLP-405-015m-PM | 15mW | PMF | 3um | Coaxial | FC | × | × | |
| XLX-405-015m-PM-H8-T | 15mW | PMF | 3um | 8-Pin | FC | ○ | √ | |
| XLP-405-030m-PM | 30mW | PMF | 3um | Coaxial | FC | × | × | |
| XLX-405-030m-PM-H8-T | 30mW | PMF | 3um | 8-Pin | FC | ○ | √ | |
| XLP-405-050m-PM | 50mW | PMF | 3um | Coaxial | FC | × | × | |
| XLX-405-050m-PM-H8-T | 50mW | PMF | 3um | 8-Pin | FC | ○ | √ | |
| XLP-405-080m-PM | 80mW | PMF | 3um | Coaxial | FC | × | × | |
| XLX-405-080m-PM-H8-T | 80mW | PMF | 3um | 8-Pin | FC | ○ | √ | |
| XLP-405-050m-10 | 50mW | UV 10um | 10um | Coaxial | FC/SMA | × | × |
Fiber type: single-mode fiber and multi-mode fiber are optional, and can be customized according to customer requirements (wavelength/power/package/fiber type/fiber core diameter, etc.), if necessary, welcome to negotiate!
