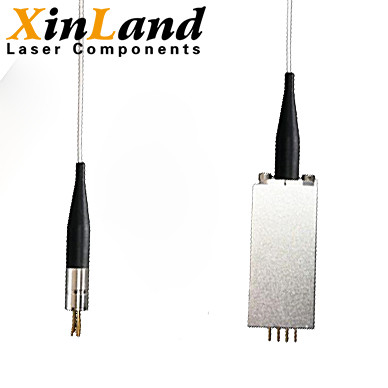

445nm 15-40mW PMF 3um Fiber Core Fiber Coupled Laser Diode Coaxial/8-Pin Package

Name: 445nm 15-40mW PMF 3um Fiber Core Fiber Coupled Laser Diode Coaxial/8-Pin Package
Brand: XINLAND LASER CO.,LTD
SKU: XLP-445 Single Mode Fiber Coupled Laser Diode
Availability: InStock

Product Details:

Place of Origin:	Xi'an Shaanxi China
Brand Name:	XINLAND
Certification:	CE
Model Number:	XLP-445 Single Mode Fiber Coupled Laser Diode

Detail Information

Place of Origin:

Xi'an Shaanxi China

Brand Name:

XINLAND

Certification:

Model Number:

XLP-445 Single Mode Fiber Coupled Laser Diode

Place Of Origin::

Xi'an Shaanxi

Wavelength:

445nm

Fiber Type:

PMF

Fiber Core:

3um

Package Type::

Coaxial/8-Pin

Connector:

PD:

Optional

TEC:

Optional

Trading Information

Minimum Order Quantity:

100pcs

Price:

Negotiated

Packaging Details:

1pcs/polybag,10pcs/inner box,100pcs/ctn

Delivery Time:

7 days

Payment Terms:

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

1000 Dozen/Dozens per Day

Product Description

445nm 15-40mW PMF 3um Fiber Core Fiber Coupled Laser Diode Coaxial/8-Pin Package

Product Details:

Model Number: XLP-445 (PD,TEC Optional)

Type: Fiber Coupled Laser Diode

Wavelength: 445nm

Fiber Type: PMF

Fiber Core: 3um

Package Type: Coaxial/8-Pin

Connector: FC

Product Specifications:

Wavelength	Part Number	Output Power	Fiber Type	Fiber Core	Package	Connector	PD	TEC
445nm	XLP-445-015m-4	15mW	SMF	3um	Coaxial	FC/SMA	×	×
	XLX-445-015m-4-H8-T	15mW	SMF	3um	8-Pin	FC/SMA	○	√
	XLX-445-015m-4-H8-T-PD	15mW	SMF	3um	8-Pin	FC/SMA	√	√
	XLP-445-030m-4	30mW	SMF	3um	Coaxial	FC/SMA	×	×
	XLX-445-030m-4-H8-T	30mW	SMF	3um	8-Pin	FC/SMA	○	√
	XLP-445-040m-4	40mW	SMF	3um	Coaxial	FC/SMA	×	×
	XLX-445-040m-4-H8-T	40mW	SMF	3um	8-Pin	FC/SMA	○	√
	XLP-445-050m-4	50mW	SMF	3um	Coaxial	FC/SMA	×	×
	XLX-445-050m-4-H8-T	50mW	SMF	3um	8-Pin	FC/SMA	○	√
	XLP-445-015m-PM	15mW	PMF	3um	Coaxial	FC	×	×
	XLX-445-015m-PM-H8-T	15mW	PMF	3um	8-Pin	FC	○	√
	XLX-445-015m-PM-H8-T-PD	15mW	PMF	3um	8-Pin	FC	√	√
	XLP-445-030m-PM	30mW	PMF	3um	Coaxial	FC	×	×
	XLP-445-040m-PM	40mW	PMF	3um	Coaxial	FC	×	×
	XLX-445-030m-PM-H8-T	30mW	PMF	3um	8-Pin	FC	○	√
	XLX-445-040m-PM-H8-T	40mW	PMF	3um	8-Pin	FC	○	√
	XLP-445-050m-9	50mW	SMF-28	9um	Coaxial	FC/SMA	×	×

Fiber coupled laser diodes are now widely used in laser radar, test and measurement, medicine, material processing and optical communications.
Multi-package form of single-mode/multi-mode fiber output can be used: 2-Pin/4-Pin/8-Pin/9-Pin/14-Pin/Coaxial/HHL-01/P4/P5.
