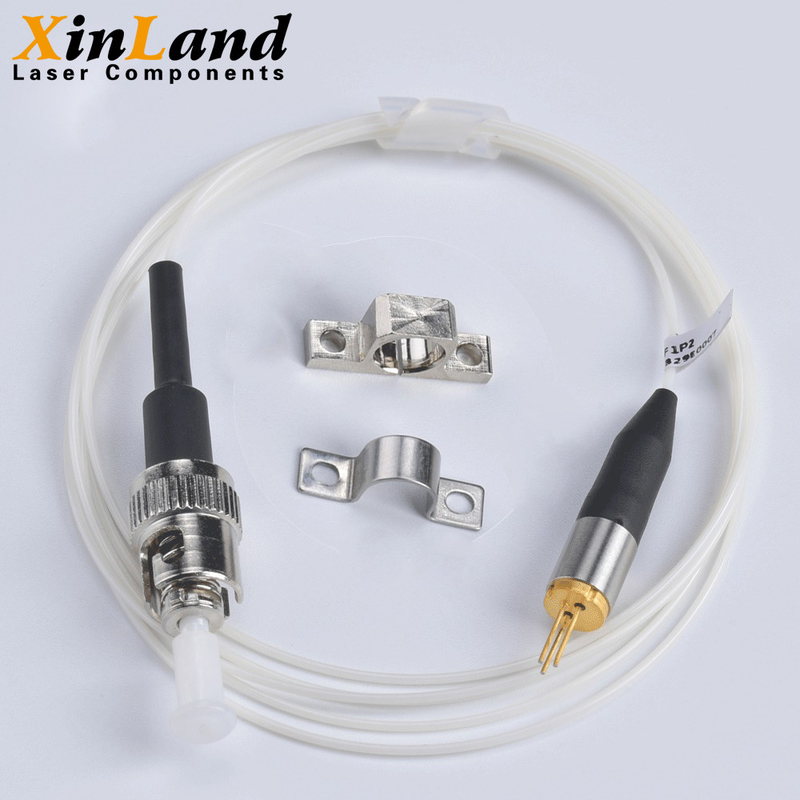

1270nm-1650nm Infrared Fiber Coupled Laser Diode with PD Coaxial Package and 8-Pin with TEC Package
Product Details:
Model Number: XLP-1270~XLP-1650
Type: Fiber Coupled Laser Diode
Wavelength: 1270nm-1650nm with PD
Fiber Type: SMF-28
Fiber Core: 9um
Package Type: Coaxial
Connector: FC/SMA
Product Specifications:
| Wavelength | Part Number | Output Power | Fiber Type | Fiber Core | Package | Connector | PD | TEC |
| 1270nm | XLP-1270-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1270-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1270-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1290nm | XLP-1290-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1290-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1290-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1310nm | XLP-1310-002m-9-FP | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1310-003m-9-DFB | 3mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLP-1310-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1310-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| XLP-1310-010m-9-DFB | 10mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1310-010m-9-H8-T-DFB | 10mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| XLP-1310-015m-9-DFB | 15mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1310-015m-9-H8-T-DFB | 15mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1330nm | XLP-1330-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1330-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1330-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1350nm | XLP-1350-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1350-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1350-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1370nm | XLP-1370-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1370-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1370-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1390nm | XLP-1390-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1390-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1390-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1410nm | XLP-1410-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1410-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1410-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1430nm | XLP-1430-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1430-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1430-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1450nm | XLP-1450-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1450-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1450-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1470nm | XLP-1470-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1470-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1470-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1490nm | XLP-1490-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1490-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1490-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1510nm | XLP-1510-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1510-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1510-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1530nm | XLP-1530-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1530-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1530-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1550nm | XLP-1550-002m-9-FP | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1550-003m-9-DFB | 3mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLP-1550-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1550-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| XLP-1550-010m-9-DFB | 10mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1550-010m-9-H8-T-DFB | 10mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1570nm | XLP-1570-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1570-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1570-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1590nm | XLP-1590-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1590-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1590-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1610nm | XLP-1610-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1610-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1610-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1625nm | XLP-1625-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1625-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1625-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ | |
| 1650nm | XLP-1650-002m-9-DFB | 2mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × |
| XLP-1650-005m-9-DFB | 5mW | SMF-28 | 9um | Coaxial | FC/SMA | √ | × | |
| XLX-1650-005m-9-H8-T-DFB | 5mW | SMF-28 | 9um | 8-Pin | FC/SMA | √ | √ |
OPERATING NOTES
◆Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close to the root of the pins. Soldering temperature should be lower than 260°C and time shorter than 10 second.
◆Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.
◆Use constant current power supply to avoid surge current during operation.
◆Laser diode must be used according to the specifications.
◆Laser diode must work with good cooling.
