| Place of Origin: | Xi'an Shaanxi China |
| Brand Name: | XINLAND |
| Certification: | CE |
| Model Number: | XLP-635~XLP-685 Multi Mode Fiber Coupled Laser Diode |

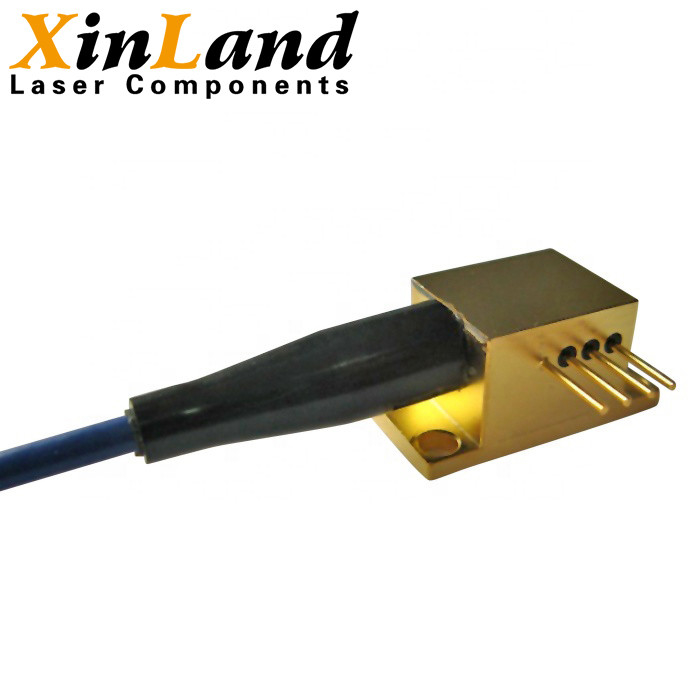

635-685nm Red Laser 50um/105um/200um Multi Mode Fiber Laser Diode Coaxial/4-Pin/8-Pin/9-Pin/14-Pin Package
Product Details:
Model Number: XLP-635~XLP-685
Type: Multi Mode Fiber Coupled Laser Diode
Wavelength: 635-685nm
Fiber Type: MMF
Fiber Core: 50um/105um/200um
Package Type: Coaxial/4-Pin/8-Pin/9-Pin/14-Pin
Connector: FC
Product Specifications:
| Wavelength | Part Number | Output Power | Fiber Type | Fiber Core | Package | Connector | PD | TEC |
| 635nm | XLP-635-005m-M-PD | 5mW | MMF | 105um | Coaxial | FC | √ | × |
| XLP-635-100m-M | 100mw | MMF | 105um | Coaxial | FC | × | × | |
| XLX-635-100m-M-H8-T | 100mW | MMF | 105um | 8-Pin | FC | ○ | √ | |
| XLX-635-100m-M-H8-T-PD | 100mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-635-150m-M | 150mW | MMF | 105um | Coaxial | FC | × | × | |
| XLX-635-150m-M-H8-T | 150mW | MMF | 105um | 8-Pin | FC | ○ | √ | |
| XLP-635-200m-M | 200mW | MMF | 105um | Coaxial | FC | × | × | |
| XLX-635-200m-M-H8-T | 200mW | MMF | 105um | 8-Pin | FC | ○ | √ | |
| XLP-635-300m-M | 300mW | MMF | 105um | Coaxial | FC | × | × | |
| XLX-635-300m-M-H8-T | 300mW | MMF | 105um | 8-Pin | FC | ○ | √ | |
| XLX-635-400m-M-H4 | 400mW | MMF | 105um | 4-Pin | FC | ○ | × | |
| XLX-635-400m-M-H14-T-PD | 400mW | MMF | 105um | 14-Pin | FC | √ | √ | |
| XLP-635-800m-50M | 800mW | MMF | 50um | Coaxial | FC | × | × | |
| XLX-635-800m-50M-H9-T-PD | 800mW | MMF | 50um | 9-Pin | FC | √ | √ | |
| XLP-635-001-M | 1W | MMF | 105um | Coaxial | FC | × | × | |
| XLX-635-001-M-H9-T-PD | 1W | MMF | 105um | 9-Pin | FC | √ | √ | |
| XLP-635-1800m-M | 1.8W | MMF | 200um | Coaxial | FC | × | × | |
| XLX-635-1800m-M-H9-T-PD | 1.8W | MMF | 200um | 9-Pin | FC | √ | √ | |
| 650nm | XLP-650-030m-M-PD | 30mW | MMF | 105um | Coaxial | FC | √ | × |
| XLX-650-030m-M-H8-T-PD | 30mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-650-050m-M-PD | 50mW | MMF | 105um | Coaxial | FC | √ | × | |
| XLX-650-050m-M-H8-T-PD | 50mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-650-100m-M | 100mW | MMF | 105um | Coaxial | FC | × | × | |
| XLX-650-100m-M-H8-T | 100mW | MMF | 105um | 8-Pin | FC | ○ | √ | |
| XLX-650-100m-M-H8-T-PD | 100mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-650-150m-M | 150mW | MMF | 105um | Coaxial | FC | × | × | |
| XLX-650-150m-M-H8-T | 150mW | MMF | 105um | 8-Pin | FC | ○ | √ | |
| XLX-650-800m-M-H4 | 800mw | MMF | 105um | 4-Pin | FC | ○ | × | |
| XLX-650-800m-M-H9-T-PD | 800mw | MMF | 105um | 9-Pin | FC | √ | √ | |
| 670nm | XLP-670-005m-M-PD | 5mW | MMF | 105um | Coaxial | FC | √ | × |
| XLX-670-005m-M-H8-T-PD | 5mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-670-010m-M-PD | 10mW | MMF | 105um | Coaxial | FC | √ | × | |
| XLX-670-010m-M-H8-T-PD | 10mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| 680nm | XLX-680-800m-M-H4 | 800mW | MMF | 105um | 4-Pin | FC | ○ | × |
| XLX-680-800m-M-H9-T-PD | 800mW | MMF | 105um | 9-Pin | FC | √ | √ | |
| 685nm | XLP-685-030m-M-PD | 30mW | MMF | 105um | Coaxial | FC | √ | × |
| XLX-685-030m-M-H8-T-PD | 30mW | MMF | 105um | 8-Pin | FC | √ | √ |
Application:
The output of the optical fiber coupled laser wavelength range between 400 nm to 3400 nm, and has small volume,light weight, detection of high resolution, high sensitivity, wide temperature range, the secrecy good, the resistance to electromagnetic interference ability strong, strong corrosion resistance and other obvious advantages. It can be used in optical data storage, optical signal communication, sensing technology, spectrum and medical applications.
Multi-package form of single-mode/multi-mode fiber output can be used: 2-Pin/4-Pin/8-Pin/9-Pin/14-Pin/Coaxial/HHL-01/P4/P5.
Note before purchase:
Choose the right fiber length according to your own requirements. The default product does not have a driver board, so if you need a driver board, please contact customer service in advance.
