Product Details:
|
| Place Of Origin:: | Xi'an Shaanxi | Wavelength: | 445nm |
|---|---|---|---|
| Fiber Type: | MMF | Fiber Core: | UV 105um |
| Package Type:: | Coaxial/8-Pin/14-Pin/HHL-01 | Connector: | FC |
| Highlight: | 105um UV Mini Laser Diode,445nm UV Mini Laser Diode,Mini Laser Diode FC Connector |
||
445nm 105um UV Laser Diode Multi Mode Fiber Coupled Laser Diode FC Connector For Laser Diode Module
Product Details:
Model Number: XLP-445
Type: Fiber Coupled Laser Diode
Wavelength: 445nm
Fiber Type: MMF
Fiber Core: UV 105um

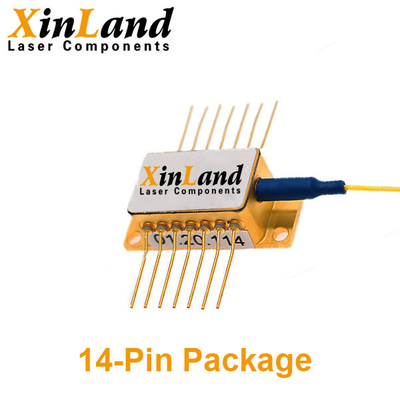

Package Type: Coaxial/8-Pin/14-Pin/HHL-01
Connector: FC
Product Specifications:
| Wavelength | Part Number | Output Power | Fiber Type | Fiber Core | Package | Connector | PD | TEC |
| 445nm | XLP-445-050m-M | 50mW | MMF | UV 105um | Coaxial | FC | × | × |
| XLX-445-050m-M-H8-T | 50mW | MMF | UV 105um | 8-Pin | FC | ○ | √ | |
| XLX-445-050m-M-H8-T-PD | 50mW | MMF | UV 105um | 8-Pin | FC | √ | √ | |
| XLP-445-080m-M | 80mW | MMF | UV 105um | Coaxial | FC | × | × | |
| XLX-445-080m-M-H8-T | 80mW | MMF | UV 105um | 8-Pin | FC | ○ | √ | |
| XLP-445-800m-M | 800mW | MMF | UV 105um | Coaxial | FC | × | × | |
| XLX-445-800m-M-H14-T-PD | 800mW | MMF | UV 105um | 14-Pin | FC | √ | √ | |
| XLP-445-001-M | 1W | MMF | UV 105um | Coaxial | FC | × | × | |
| XLX-445-001-M-H-T | 1W | MMF | UV 105um | HHL-01 | FC | ○ | √ |
Fiber coupled laser diodes are now widely used in laser radar, test and measurement, medicine, material processing and optical communications.
Multi-package form of single-mode/multi-mode fiber output can be used: 2-Pin/4-Pin/8-Pin/9-Pin/14-Pin/Coaxial/HHL-01/P4/P5.
