| Place of Origin: | Xi'an Shaanxi China |
| Brand Name: | XINLAND |
| Certification: | CE |
| Model Number: | XLP-520~XLX-850 Multi Mode Fiber Coupled Laser Diode |

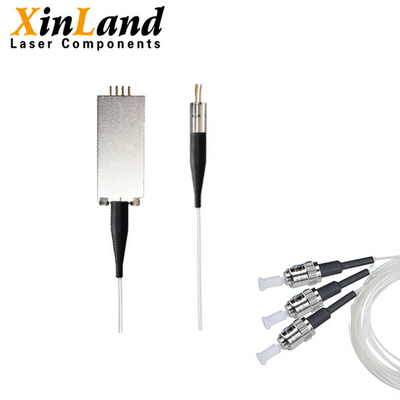

520nm-850nm Multi Mode Fiber Coupled Laser Diode 808nm 150mW 62.5um Particular Fiber Core Laser Diode Manufacturers
Product Details:
Model Number: XLP-520~XLX-850
Type: Fiber Coupled Laser Diode
Wavelength: 520nm-850nm
Fiber Type: MMF
Fiber Core: 62.5um 105um
Package Type: Coaxial/8-Pin/P4/P5
Connector: FC
Product Specifications:
| Wavelength | Part Number | Output Power | Fiber Type | Fiber Core | Package | Connector | PD | TEC |
| 520nm | XLP-520-030m-M-PD | 30mW | MMF | 105um | Coaxial | FC | √ | × |
| XLX-520-030m-M-H8-T-PD | 30mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-520-050m-M-PD | 50mW | MMF | 105um | Coaxial | FC | √ | × | |
| XLX-520-050m-M-H8-T-PD | 50mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| 785nm | XLP-785-015m-M-PD | 15mW | MMF | 105um | Coaxial | FC | √ | × |
| XLX-785-015m-M-H8-T-PD | 15mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-785-050m-M-PD | 50mW | MMF | 105um | Coaxial | FC | √ | × | |
| XLX-785-050m-M-H8-T-PD | 50mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-785-080m-M-PD | 80mw | MMF | 105um | Coaxial | FC | √ | × | |
| XLX-785-080m-M-H8-T-PD | 80mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-785-100m-M-PD | 100mw | MMF | 105um | Coaxial | FC | √ | × | |
| XLX-785-100m-M-H8-T-PD | 100mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| 808nm | XLP-808-150m-M-PD | 150mW | MMF | 62.5um | Coaxial | FC | √ | × |
| XLX-808-150m-M-H8-T-PD | 150mW | MMF | 62.5um | 8-Pin | FC | √ | √ | |
| XLP-808-200m-M-PD | 200mW | MMF | 105um | Coaxial | FC | √ | × | |
| XLX-808-200m-M-H8-T-PD | 200mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-808-700m-M | 700mW | MMF | 105um | Coaxial | FC | ○ | × | |
| 830nm | XLP-830-120m-M-PD | 120mW | MMF | 105um | Coaxial | FC | √ | × |
| XLX-830-120m-M-H8-T-PD | 120mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-830-150m-M-PD | 150mW | MMF | 105um | Coaxial | FC | √ | × | |
| XLX-830-150m-M-H8-T-PD | 150mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-830-700m-M | 700mW | MMF | 105um | Coaxial | FC | ○ | × | |
| 850nm | XLP-850-050m-M-PD | 50mW | MMF | 105um | Coaxial | FC | √ | × |
| XLX-850-050m-M-H8-T-PD | 50mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-850-150m-M-PD | 150mW | MMF | 105um | Coaxial | FC | √ | × | |
| XLX-850-150m-M-H8-T-PD | 150mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| XLP-850-200m-M-PD | 200mW | MMF | 105um | Coaxial | FC | √ | × | |
| XLX-850-200m-M-H8-T-PD | 200mW | MMF | 105um | 8-Pin | FC | √ | √ |
Main product wavelengths: 405nm, 445nm, 488nm, 505nm, 520nm, 525nm, 635nm, 658nm, 680nm, 785nm, 808nm, 830nm, 850nm, 860nm, 880nm, 915nm, 940nm, 980nm, 1064nm, 1210nm,1280nm,1310nm, 1330nm, 1450nm, 1470nm, 1490nm, 1530nm, 1550nm, 1720nm, 1900nm, 1920nm.
Laser Color: UV, Blue-violet, Blue, Green, Orange-red,Red, and Infrared light.
