Product Details:
|
| Place Of Origin:: | Xi'an Shaanxi | Wavelength: | 760nm-830nm |
|---|---|---|---|
| Fiber Type: | MMF | Fiber Core: | 50um 105um |
| Package Type:: | 2-Pin/4-Pin/9-Pin/14-Pin | Connector: | FC |
| High Light: | Red IR Mini Laser Diode,830nm IR Mini Laser Diode,760nm Powerful Fiber Laser Diode |
||

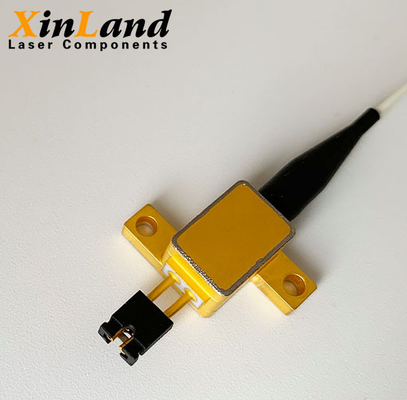

520nm-850nm Multi Mode Fiber Coupled Laser Diode 808nm 150mW 62.5um Particular Fiber Core Laser Diode Manufacturers
Product Details:
Model Number: XLP-760~XLX-830
Type: Fiber Coupled Laser Diode
Wavelength: 760nm-830nm
Fiber Type: MMF
Fiber Core: 50um 105um
Package Type: 2-Pin/4-Pin/9-Pin/14-Pin
Connector: FC
Product Specifications:
| Wavelength | Part Number | Output Power | Fiber Type | Fiber Core | Package | Connector | PD | TEC |
| 760nm | XLX-760-1500m-M-H2 | 1.5W | MMF | 105um | 2-Pin | FC | × | × |
| XLX-760-1500m-M-H14-T-PD | 1.5W | MMF | 105um | 14-Pin | FC | √ | √ | |
| 785nm | XLX-785-001-M-H14-T-PD | 1W | MMF | 105um | 14-Pin | FC | √ | √ |
| XLX-785-003-M-H2 | 3W | MMF | 105um | 2-Pin | FC | × | × | |
| XLX-785-003-M-H9-T-PD | 3W | MMF | 105um | 9-Pin | FC | √ | √ | |
| 808nm | XLX-808-002-M-H14-T-PD | 2W | MMF | 105um | 14-Pin | FC | √ | √ |
| XLX-808-2500m-M-H2 | 2.5W | MMF | 105um | 2-Pin | FC | × | × | |
| XLX-808-004-M-H2 | 4W | MMF | 105um | 2-Pin | FC | × | × | |
| XLX-808-004-M-H9-T-PD | 4W | MMF | 105um | 9-Pin | FC | √ | √ | |
| XLX-808-005-M-H2 | 5W | MMF | 105um | 2-Pin | FC | × | × | |
| XLX-808-008-M-H2 | 8W | MMF | 105um | 2-Pin | FC | × | × | |
| XLX-808-008-M-H9-T-PD | 8W | MMF | 105um | 9-Pin | FC | √ | √ | |
| 830nm | XLX-830-001-M-H2 | 1W | MMF | 50um | 2-Pin | FC | × | × |
| XLX-830-002-M-H4 | 2W | MMF | 50um | 4-Pin | FC | ○ | × | |
| XLX-830-002-50M-H14-T-PD | 2W | MMF | 50um | 14-Pin | FC | √ | √ | |
| XLX-830-002-105M-H14-T-PD | 2W | MMF | 105um | 14-Pin | FC | √ | √ | |
| XLX-830-003-M-H2 | 3W | MMF | 105um | 2-Pin | FC | × | × |
Main product wavelengths: 405nm, 445nm, 488nm, 505nm, 520nm, 525nm, 635nm, 658nm, 680nm, 785nm, 808nm, 830nm, 850nm, 860nm, 880nm, 915nm, 940nm, 980nm, 1064nm, 1210nm,1280nm,1310nm, 1330nm, 1450nm, 1470nm, 1490nm, 1530nm, 1550nm, 1720nm, 1900nm, 1920nm.
Package Type: Coaxial Package,2-Pin/4-Pin/8-Pin/9-Pin/14-Pin Package,HHL-01 Package,P4/P5 Package
Most of the multimode fiber cores are 105 μm,The transmission distance is small,the mode dispersion is large, and the generated light is dispersive. Choose the right fiber length according to your own requirements. The default product does not have a driver board, so if you need a driver board, please contact customer service in advance.
