Product Details:
|
| Place Of Origin:: | Xi'an Shaanxi | Wavelength: | 860-1064nm |
|---|---|---|---|
| Fiber Type: | MMF | Fiber Core: | 105um |
| Package Type:: | Coaxial/2-Pin/4-Pin/8-Pin/9-Pin/14-Pin | Connector: | FC |
| High Light: | 1064nm Fiber Pigtailed Diode,860nm Fiber Pigtailed Diode,1064nm High Power Fiber Coupled Laser Diode |
||
Strongest Diode Laser 860-1064nm Fiber Pigtailed Diode High Power Fiber Coupled Laser Diode for Sale
Product Details:
Type: Fiber Coupled Laser Diode
Wavelength: 860-1064nm
Fiber Type: MMF
Fiber Core: 105um

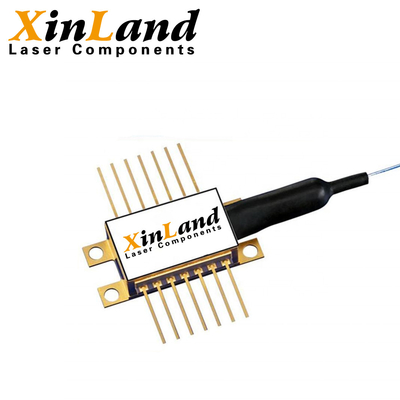

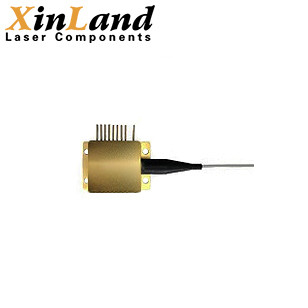

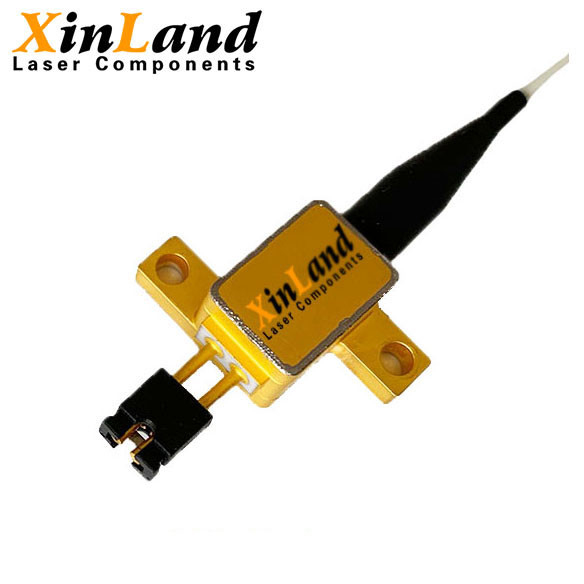

Package Type: Coaxial/2-Pin/4-Pin/8-Pin/9-Pin/14-Pin
Connector: FC
Product Specifications:
| Wavelength | Output Power | Fiber Type | Fiber Core | Package | Connector | PD | TEC |
| 860nm | 700mW | MMF | 105um | Coaxial | FC | ○ | × |
| 2W | MMF | 105um | 4-Pin | FC | ○ | × | |
| 2W | MMF | 105um | 14-Pin | FC | √ | √ | |
| 880nm | 5mW | MMF | 105um | Coaxial | FC | √ | × |
| 5mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| 2W | MMF | 105um | 14-Pin | FC | √ | √ | |
| 3W | MMF | 105um | 2-Pin | FC | × | × | |
| 905nm | 50mW | MMF | 105um | Coaxial | FC | √ | × |
| 50mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| 915nm | 10/12W | MMF | 105um | 2-Pin | FC | × | × |
| 940nm | 100/150mw | MMF | 105um | Coaxial | FC | √ | × |
| 100/150mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| 700mW | MMF | 105um | Coaxial | FC | ○ | × | |
| 2W | MMF | 105um | 14-Pin | FC | √ | √ | |
| 3/10/12W | MMF | 105um | 2-Pin | FC | × | × | |
| 4W | MMF | 105um | 9-Pin | FC | √ | √ | |
| 980nm | 30-150mw | MMF | 105um | Coaxial | FC | √ | × |
| 100/150mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| 700mw | MMF | 105um | Coaxial | FC | ○ | × | |
| 2W | MMF | 105um | 14-Pin | FC | √ | √ | |
| 3/10/12W | MMF | 105um | 2-Pin | FC | × | × | |
| 4W | MMF | 105um | 9-Pin | FC | √ | √ | |
| 1064nm | 30/100mW | MMF | 105um | Coaxial | FC | √ | × |
| 30/100mW | MMF | 105um | 8-Pin | FC | √ | √ | |
| 1W | MMF | 105um | 14-Pin | FC | √ | √ | |
| 4/7W | MMF | 105um | 2-Pin | FC | × | × | |
| 4W | MMF | 105um | 9-Pin | FC | √ | √ |
OPERATING NOTES
◆Avoid eye and skin exposure to direct radiation during operation.
◆ Do not bend the fiber wire excessively to avoid the core breaking.

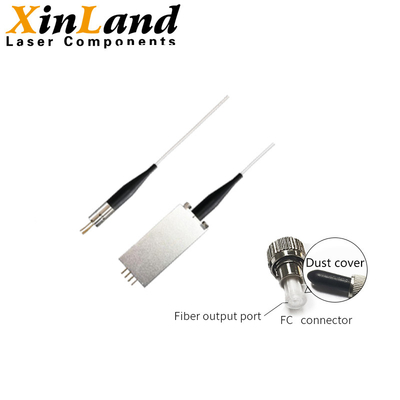

◆When the optical fiber module is not in use, please install the dust cover at the optical fiber connector.
◆Do not place heavy objects on the optical fiber, and do not pull the optical fiber excessively to avoid damage to the optical fiber.
