Mini Laser Diode
>
650nm 680nm 1W Red Laser Diode FAC Optional For Funny Cat Playing Pen

650nm 680nm 1W Red Laser Diode FAC Optional For Funny Cat Playing Pen

Product Details:
Place of Origin: Xi'an Shaanxi China
Brand Name: XINLAND
Certification: CE
Model Number: XLD-650/XLD-680 Laser Diode
Detail Information
Place of Origin:
Xi'an Shaanxi China
Brand Name:
XINLAND
Certification:
CE
Model Number:
XLD-650/XLD-680 Laser Diode
Place Of Origin:
Xi'an Shaanxi
Wavelength:
650nm 680nm
Output Power:
1W
Package Type:
C-mount/TO3/E-mount
FAC:
Optional
Laser Type:
FP
Highlight:

High Light

Highlight:

680nm 1W Red Laser Diode

,

650nm 1W Red Laser Diode

,

1W Red Laser Diode FAC

Trading Information
Minimum Order Quantity:
100pcs
Price:
Negotiated
Packaging Details:
1pcs/polybag,10pcs/inner box,100pcs/ctn
Delivery Time:
7 days
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
1000 Dozen/Dozens per Day
Product Description

Factory Wholesale 650nm 680nm 1W Red Laser Diode FAC Optional Suitable for Funny Cat Playing Pen Meeting Laser Pointer
Product Details​:

Model Number: XLD-650/XLD-680(FAC Optional)

Type: Laser Diode

Laser Type: Red Laser

Power: 1W

Wavelength: 650nm/680nm

          Package Type: C-mount/TO3/E-mount
Product Specifications:

Wavelength Part Number Output Power Mode Type Laser Type Package PD FAC
650nm XLD-650-001-C 1W MM FP C-mount ×
XLD-650-001-3 1W MM FP TO3 ×
XLD-650-001-E 1W MM FP E-mount ×
680nm XLD-680-001-C 1W MM FP C-mount ×
XLD-680-001-3 1W MM FP TO3 ×
XLD-680-001-E 1W MM FP E-mount ×

FAC

Laser diodes are key components in high power semiconductor lasers. During manufacture, the assembly of the fast axis collimation (FAC) lens is a crucial step.

Design optional fast-axis collimation lenses (Fast-Axis Collimation lenses, FAC lenses). These lenses collimate each diode Bar and reduce the divergence angle to a very small value (8 mrad @ 1/e²) on the fast axis.

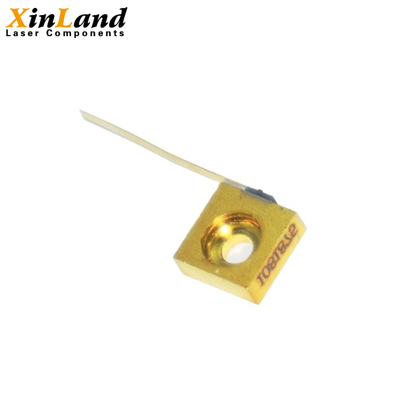

The C-mount production process is more complicated. C-mount package has the advantages of high reliability, high stability, high precision machining, high thermal conductivity, etc.

The color of the laser depends on the wavelength of the laser, and the wavelength depends on the active material that emits the laser, that is, the material that can produce the laser after being stimulated.

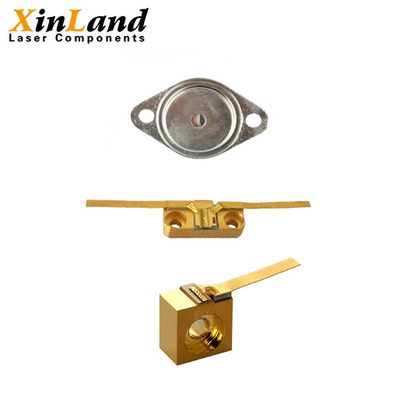

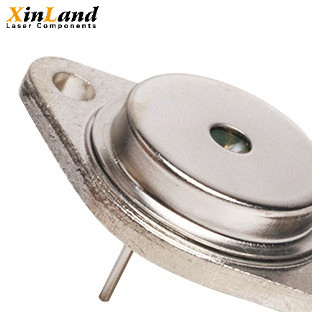

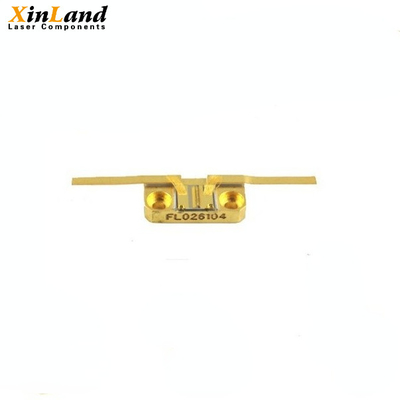

Package Type:

650nm 680nm 1W Red Laser Diode FAC Optional  For Funny Cat Playing Pen 0650nm 680nm 1W Red Laser Diode FAC Optional  For Funny Cat Playing Pen 1650nm 680nm 1W Red Laser Diode FAC Optional  For Funny Cat Playing Pen 2
