Product Details:
|
| Place Of Origin: | Xi'an Shaanxi | Wavelength: | 808nm-980nm |
|---|---|---|---|
| Output Power: | 2W/1W | Package Type: | TO5 |
| PD: | Yes/Optional | Laser Type: | Infrared Laser |
| High Light: | 980nm 2W Infrared Laser Diode,808nm 1W Infrared Laser Diode,808nm TO5 Infrared Laser Diode |
||

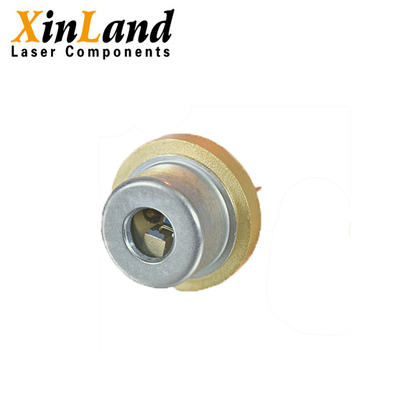

808nm-980nm 2W/1W Infrared Laser Diode TO5 Package 1W With PD 2W PD Optional Laser Diode
Product Details:
Since the biological effects of light strongly depend on the wavelength of light, the monochromaticity of lasers has been important in clinical selective treatment. In addition, the monochromatic properties of lasers have also been widely used in spectroscopy and optical measurement, and have become An important method for basic medical research and clinical diagnosis.
Laser is another major invention of mankind since the 20th century, after atomic energy, computers, and semiconductors. It is called "the fastest knife", "the most accurate ruler", "the brightest light" and "singular laser."
Product Specifications:
| Wavelength | Part Number | Output Power | Mode Type | Laser Type | Package | PD | FAC |
| 808nm | XLD-808-001-2-PD | 1W | MM | FP | TO5 | √ | ○ |
| XLD-808-002-2 | 2W | MM | FP | TO5 | ○ | ○ | |
| 830nm | XLD-830-001-2-PD | 1W | MM | FP | TO5 | √ | ○ |
| XLD-830-002-2 | 2W | MM | FP | TO5 | ○ | ○ | |
| 860nm | XLD-860-001-2-PD | 1W | MM | FP | TO5 | √ | ○ |
| XLD-860-002-2 | 2W | MM | FP | TO5 | ○ | ○ | |
| 940nm | XLD-940-001-2-PD | 1W | MM | FP | TO5 | √ | ○ |
| XLD-940-002-2 | 2W | MM | FP | TO5 | ○ | ○ | |
| 980nm | XLD-980-001-2-PD | 1W | MM | FP | TO5 | √ | ○ |
| XLD-980-002-2 | 2W | MM | FP | TO5 | ○ | ○ |
