Product Details:
|
| Wavelength: | 808±10nm | Output Power: | 300 W/500W/600W |
|---|---|---|---|
| Working Current: | 45~50 A | Working Voltage: | 10.8~12 V |
| Frequency: | 1~10 Hz | Weight: | 0.05kg |
Specification
Product Description

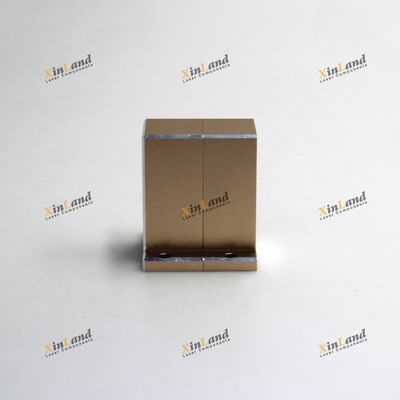

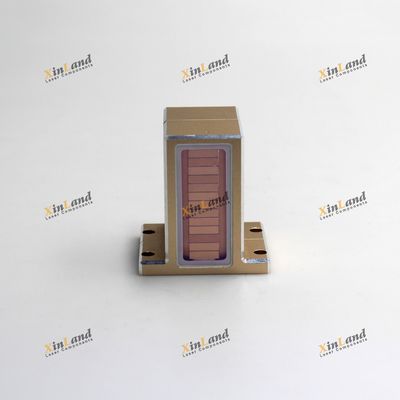

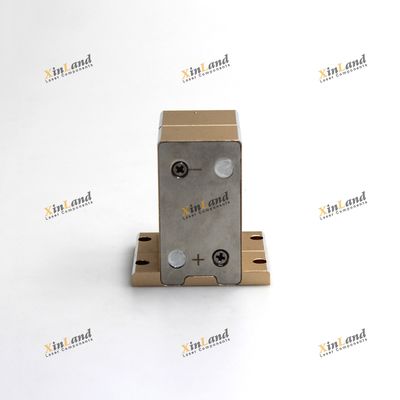

808nm 300W 500W 600W Pulse Bar Diode Laser Diode Bar Chip
1.Gold tin packaging.
2.High reliability and stability.
3.Standard industrial structure.
4.The divergence angle of light is small.
5.Wide range of customer application conditions.
6.Can be customized according to customers.
Vertical and Horizontal diode laser stacks and two-dimensional arrays, with power into the multi-kW range, for pumping, directed energy, hair removal, and materials processing.
Continuous Wave (CW) Stacks - microchannel cooling and uses it to enable optimum thermal management at high powers.
Pulsed Stacks - Covering QCW to long pulse conditions with conduction cooling and tap-water cooling options.
Broadest Wavelength Range - The range from 638 nm up to 2200 nm includes all major solid-state and fiber laser pump wavelengths as well as wavelengths used for defense, materials processing and medical aesthetics.
