Diode Laser Stacks
>
1064nm 50W 75W CW High Power Diode Pumped Laser Diode for Laser Marking Engraving Cutting Industry

1064nm 50W 75W CW High Power Diode Pumped Laser Diode for Laser Marking Engraving Cutting Industry

Product Details:
Place of Origin: Shaanxi,China
Brand Name: Xinland
Model Number: DPL-50W/75W
Detail Information
Place of Origin:
Shaanxi,China
Brand Name:
Xinland
Model Number:
DPL-50W/75W
Output Wavelength:
1064nm
Wavelength:
1064±3 Nm
Working Current:
≤25 A/≤30 A
Working Voltage:
≤18 V/≤24 V
Weight:
0.05kg
Trading Information
Minimum Order Quantity:
1pcs
Delivery Time:
30DAYS
Payment Terms:
T/T
Supply Ability:
10000PCS
Product Description

Specification

Model number:DPL-50W/75W
Output Wavelength:1064 nm
Wavelength:±3 nm
Bar quantity :9 Pcs
Peak Power/Bar:50 W/75W
Crystal material:Nd:YAG /
Crystal diameter:3 mm
Crystal length:67 mm
Working current :≤25 A/≤30 A
Working voltage:≤18 V/≤24 V
Threshold Current:8 A
Water quality :Distilled or deionized water(Filtration system<30um)
Water temperature :22~25 ℃
Water pressure:0.5 Mpa
Minimum water flow:5 L/min
Storage temperature:-55~85 ℃



Product Description

Product Features:
1.Gold tin packaging.
2.High reliability and stability.
3.Standard industrial structure.
4.Wide range of customer application conditions.
5.Collimation can be added.
Main applications:
1.pumping.

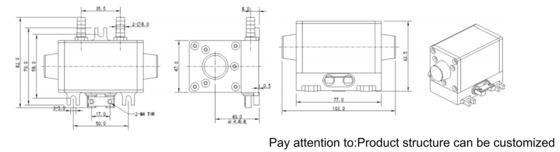

1064nm 50W 75W CW High Power Diode Pumped Laser Diode for Laser Marking Engraving Cutting Industry 0

Vertical and Horizontal diode laser stacks and two-dimensional arrays, with power into the multi-kW range, for pumping, directed energy, hair removal, and materials processing.

Continuous Wave (CW) Stacks - microchannel cooling and uses it to enable optimum thermal management at high powers.
Pulsed Stacks - Covering QCW to long pulse conditions with conduction cooling and tap-water cooling options.
Broadest Wavelength Range - The range from 638 nm up to 2200 nm includes all major solid-state and fiber laser pump wavelengths as well as wavelengths used for defense, materials processing and medical aesthetics.

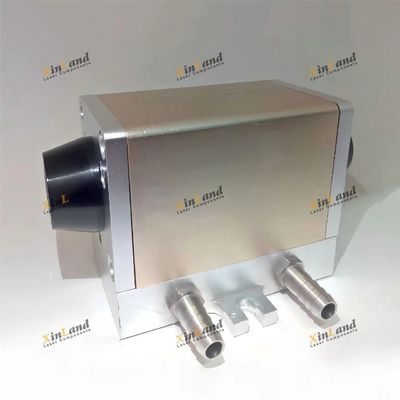

1064nm 50W 75W CW High Power Diode Pumped Laser Diode for Laser Marking Engraving Cutting Industry 1
