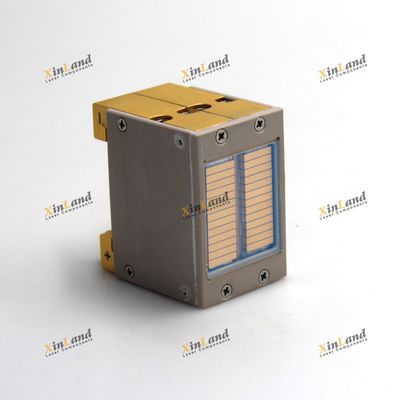

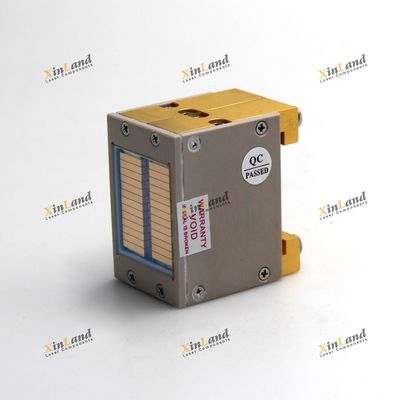

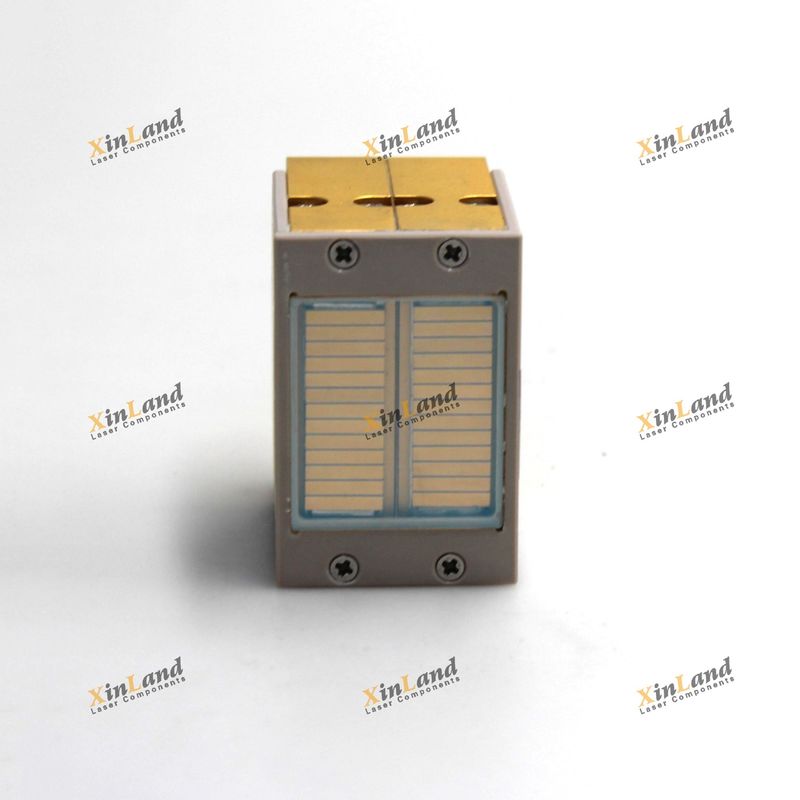

Xinland 1064nm Laser Hair Removal Diode High Power Diode Laser Bar

Large Image : Xinland 1064nm Laser Hair Removal Diode High Power Diode Laser Bar

Product Details:

Place of Origin:	Shaanxi，China
Brand Name:	Xinland
Model Number:	WH-B

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Delivery Time:	30DAYS
Payment Terms:	T/T
Supply Ability:	10000PCS

Contact Now

Xinland 1064nm Laser Hair Removal Diode High Power Diode Laser Bar

Description

Output Power:	2400W	Wavelength:	755/808/1064 Nm
Working Current:	95-100 A	Working Voltage:	1.8V/Bar V
Weight:	0.05kg

Specification

Output power:2400W
Wavelength:755/808/1064 nm
Bar quantity :24 Pcs
Bar interval:2-1.9 mm
Light size:23.7X22.63 mm X mm
Working current :95-100 A
Working voltage:1.8V/Bar V
Duty cycle: ≤10 %
Pulse width:≤80 msec
Frequency:1~10 Hz
Water quality : Distilled or deionized water
Water temperature :18~30℃
Water pressure: 0.3~0.4 Mpa
Water discharge:3.5~4.5 lpm

Product Description

Xinland 1064nm Laser Hair Removal Diode High Power Diode Laser Bar

1.Gold tin packaging.
2.High reliability and stability.
3.High power density, adsorption hair removal.
4.The divergence angle of light is smal.
5.Wide range of customer application conditions.
6.Can be customized according to customers.

Xinland 1064nm Laser Hair Removal Diode High Power Diode Laser Bar 0

Vertical and Horizontal diode laser stacks and two-dimensional arrays, with power into the multi-kW range, for pumping, directed energy, hair removal, and materials processing.

Continuous Wave (CW) Stacks - microchannel cooling and uses it to enable optimum thermal management at high powers.
Pulsed Stacks - Covering QCW to long pulse conditions with conduction cooling and tap-water cooling options.
Broadest Wavelength Range - The range from 638 nm up to 2200 nm includes all major solid-state and fiber laser pump wavelengths as well as wavelengths used for defense, materials processing and medical aesthetics.

Xinland 1064nm Laser Hair Removal Diode High Power Diode Laser Bar 3
