100 Grid Positioning Laser Diode Modules 50mw 450nm 650nm

Name: 100 Grid Positioning Laser Diode Modules 50mw 450nm 650nm
Brand: XINLAND LASER CO.,LTD
SKU: DOE Laser Module
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	xinland
Certification:	CE
Model Number:	DOE Laser Module

Detail Information

Place of Origin:

China

Brand Name:

xinland

Certification:

Model Number:

DOE Laser Module

Lens Angle:

42°

Number Of Grids:

10*10=100

Laser Style:

Line

Light Source:

Red/Green/Blue

Wavelength:

450nm/520nm/650nm

Output Power:

50mw/100mw Customizable

Line Length:

1.2 Meters

Configure:

Imported Laser Diodes

Highlight:

High Light

Highlight:

100 Grid Positioning Laser Diode Modules

Positioning Laser Diode Modules 50mw

Positioning Laser Diode Modules 450nm

Trading Information

Minimum Order Quantity:

10pcs

Price:

Negotiated

Packaging Details:

1pc carton

Delivery Time:

5-8 work days

Payment Terms:

T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

50000pcs per months

Product Description

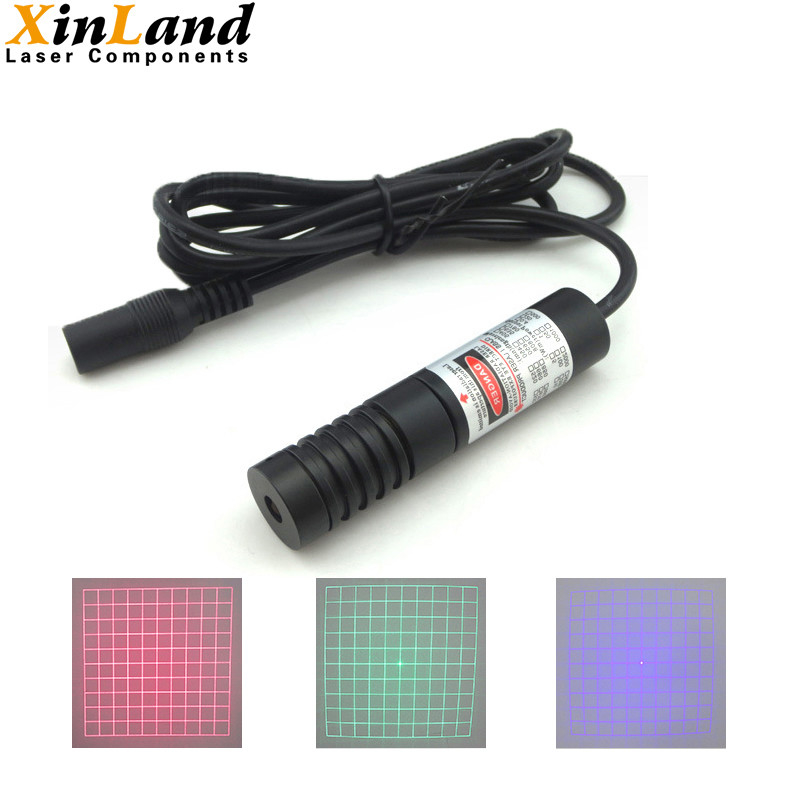

42° 100 Grid Line Effect Square Grid Positioning Laser Diode Laser Modules

Product Details:

Wavelength	Output Power	Voltage(V)	Electric Current	Size
650nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm
520nm	50mw	DC 2.8-5.2V	<500mA	Φ16x70mm
450nm	100mw	DC 2.8-5.2V	<500mA	Φ16x70mm

Light Spot Details:

Lens angle: 42°

At 50 cm: the outer frame is 38.4 cm long (the side of a single small grid is 3.84 cm long)

At 100 cm: the outer frame is 76.8 cm long (the side of a single small grid is 7.68 cm long)

Installation height 0 meters - 5 meters can be used

Wavelength, Output Power, Voltage and Size Customizable

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
