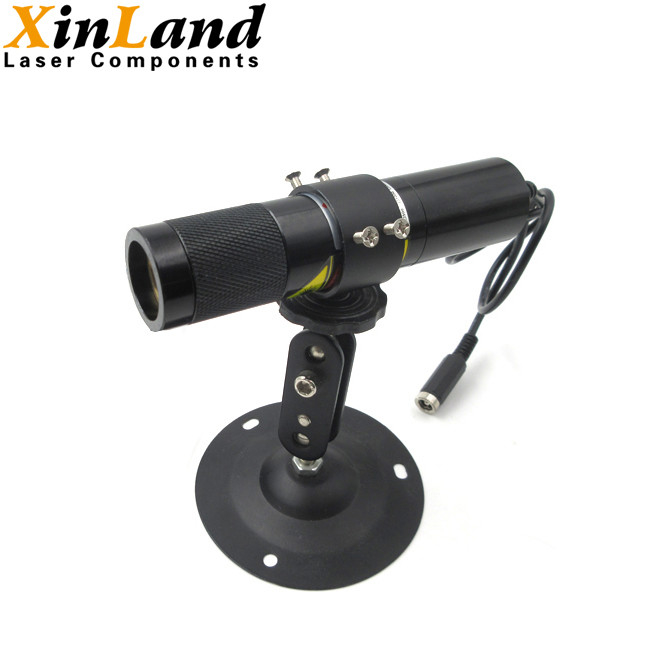

Semicircle Shoe Making Machine Red Laser Module DC5V 100mw

Name: Semicircle Shoe Making Machine Red Laser Module DC5V 100mw
Brand: XINLAND LASER CO.,LTD
SKU: DOE Laser Module
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	xinland
Certification:	CE
Model Number:	DOE Laser Module

Detail Information

Place of Origin:

China

Brand Name:

xinland

Certification:

Model Number:

DOE Laser Module

Light Source:

Red

Wavelength:

635nm/650nm/660nm

Output Power:

5mw/100mw Customizable

Voltage:

DC 3-5V

Incentive Method:

Electrically Excited

Application:

Special For Shoe Making Machine

Highlight:

High Light

Highlight:

Semicircle Red Laser Module

Red Laser Module DC5V

Red Laser Module 100mw

Trading Information

Minimum Order Quantity:

10pcs

Price:

Negotiated

Packaging Details:

1pc carton

Delivery Time:

5-8 work days

Payment Terms:

T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

50000pcs per months

Product Description

635nm/660nm 3 Horizontal and 1 Vertical Plus Semicircle Red Laser Special for Shoe Factories

Product Details:

Wavelength	Output Power	Voltage(V)	Electric Current	Size
635nm/650nm/660nm	5mw/100mw	DC 3-5V	<200mA	Φ27x120mm

application Range:

The nailing machine, automatic heel loading machine, the heel setting machine, the upper setting machine, the midsole setting machine and other mechanical equipment play a role in setting the line

Light Spot Details:

Spot Shape, Wavelength, Output Power, Voltage and Size Customizable

At 25 cm
At 25cm: from top to bottom, the shortest dimension of the horizontal line: 12.5mm/21.5mm/12.5mm The shortest dimension of the vertical line: 29mm
At 25cm: from top to bottom, the longest dimension of the horizontal line: 21mm/35mm/21mm, the longest dimension of the vertical line: 46mm
At 50 cm
At 50cm: from top to bottom, the shortest dimension of the horizontal line: 20mm/33mm/20mm, the shortest dimension of the vertical line: 44mm
At 50cm: from top to bottom, the longest dimension of the horizontal line: 34mm/58mm/34mm, the longest dimension of the vertical line: 77mm

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
