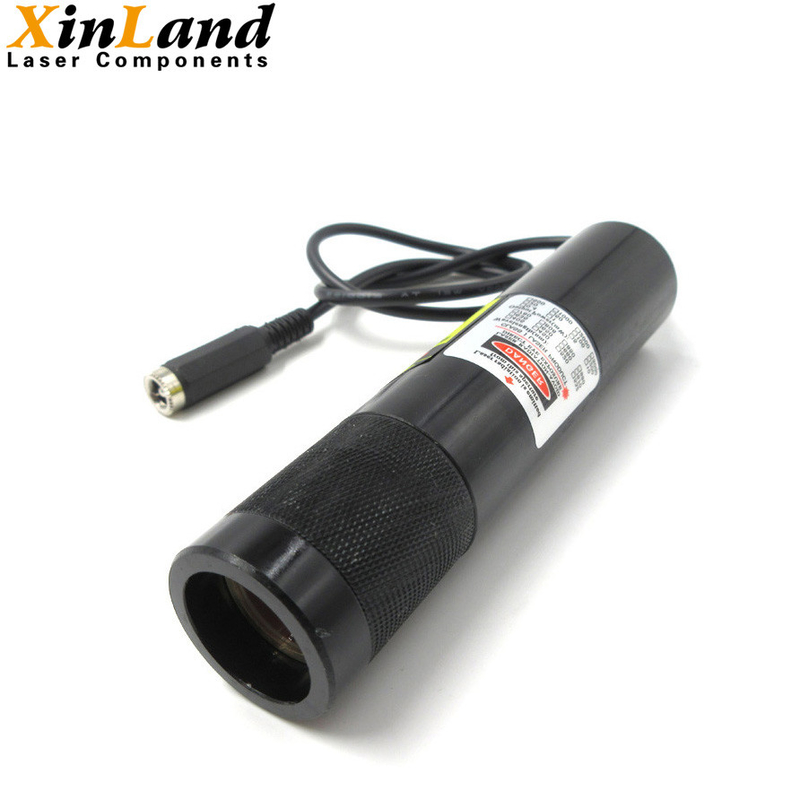

532nm 5mw Positioning Light Green Laser Module DC5V For Shoe Machine

Name: 532nm 5mw Positioning Light Green Laser Module DC5V For Shoe Machine
Brand: XINLAND LASER CO.,LTD
SKU: DOE Laser Module
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	xinland
Certification:	CE
Model Number:	DOE Laser Module

Detail Information

Place of Origin:

China

Brand Name:

xinland

Certification:

Model Number:

DOE Laser Module

Light Source:

Green

Wavelength:

532nm

Output Power:

5mw

Voltage:

DC 5V

Application:

Shoe Machine Positioning Light

Operating Temperature:

0℃-30℃

Storage Temperature:

-40℃-80℃

Highlight:

High Light

Highlight:

5mw Positioning Light Green Laser Module

532nm Positioning Green Laser Module

DC5V Positioning Green Laser Module

Trading Information

Minimum Order Quantity:

10pcs

Price:

Negotiated

Packaging Details:

1pc carton

Delivery Time:

5-8 work days

Payment Terms:

T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

50000pcs per months

Product Description

532nm 5mw Shoe Machine Positioning Light Green Laser Module Special for Shoe Factories

Product Details:

Imported special lens, uniform and slender light spot, compact structure, external adjustment design, easy installation, can work after power on

Wavelength	Output Power	Voltage(V)	Electric Current	Size
532nm	5mw	DC 5V	<200mA	Φ27x120mm

Light Spot Details:

At 25 cm

At 25cm: from top to bottom, the shortest dimension of the horizontal line: 12.5mm/21.5mm/12.5mm The shortest dimension of the vertical line: 29mm

At 25cm: from top to bottom, the longest dimension of the horizontal line: 21mm/35mm/21mm, the longest dimension of the vertical line: 46mm

At 50 cm

At 50cm: from top to bottom, the shortest dimension of the horizontal line: 20mm/33mm/20mm, the shortest dimension of the vertical line: 44mm

At 50cm: from top to bottom, the longest dimension of the horizontal line: 34mm/58mm/34mm, the longest dimension of the vertical line: 77mm

Spot Shape, Wavelength, Output Power, Voltage and Size Customizable

application Range:

The nailing machine, automatic heel loading machine, the heel setting machine, the upper setting machine, the midsole setting machine and other mechanical equipment play a role in setting the line

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
