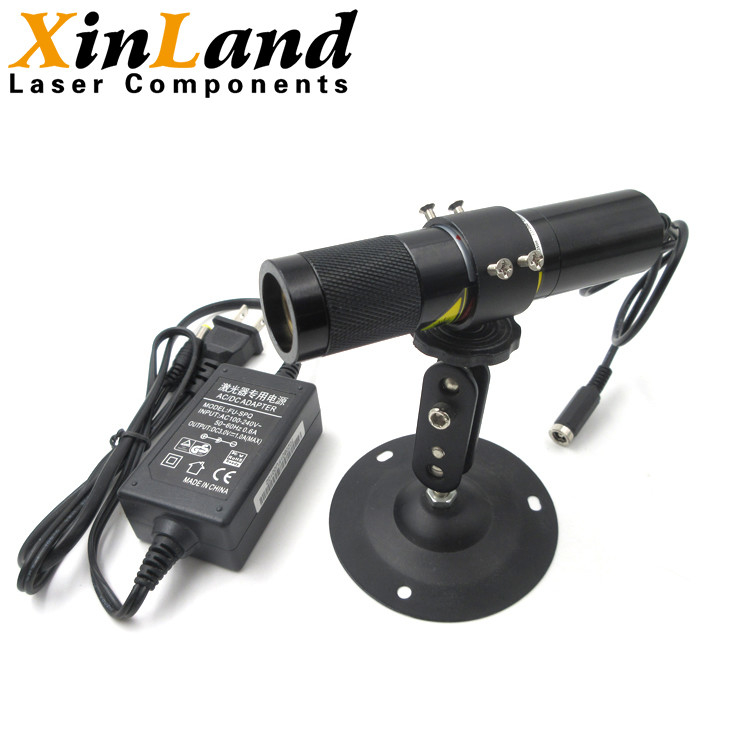

Projection Positioning 5mw Vertical Laser Module 650nm

Name: Projection Positioning 5mw Vertical Laser Module 650nm
Brand: XINLAND LASER CO.,LTD
SKU: DOE Laser Module
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	xinland
Certification:	CE
Model Number:	DOE Laser Module

Detail Information

Place of Origin:

China

Brand Name:

xinland

Certification:

Model Number:

DOE Laser Module

Light Source:

Red

Wavelength:

650nm

Output Power:

5mw

Voltage:

DC 2.8-5.2V

Installation Height:

0m-1m

Operating Temperature:

0℃-30℃

Storage Temperature:

-40℃-80℃

Highlight:

High Light

Highlight:

5mw Vertical Laser Module

Projection Positioning Vertical Laser Module

Vertical Laser Module 650nm

Trading Information

Minimum Order Quantity:

10pcs

Price:

Negotiated

Packaging Details:

1pc carton

Delivery Time:

5-8 work days

Payment Terms:

T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability:

50000pcs per months

Product Description

650nm 5mw 4 Short Horizontal 3 Long Horizontal One Vertical Red Laser Module Projection Positioning Light

Product Details:

Imported special lens, uniform and slender light spot, compact structure, external adjustment design, easy installation, can work after power on

Wavelength	Output Power	Voltage(V)	Electric Current	Size
650nm	5mw	DC 2.8-5.2V	<60mA	Φ27x120mm

Light Spot Details:

At 25cm

At 25cm: Four short horizontal lines size: 10 mm; Three long horizontal lines size: 15 mm; Vertical line size: 30 mm; Narrow spacing between horizontal lines: 3.5 mm

At 25 cm: four short horizontal lines size: 20 mm, Three long horizontal lines size: 27 mm, vertical line size: 54 mm, Narrow spacing between horizontal lines: 7 mm

At 50cm

At 50cm: Four short horizontal lines size: 17 mm; Three long horizontal lines size: 22 mm; Vertical line size: 44 mm; Narrow spacing between horizontal lines: 5 mm

At 50 cm: four short horizontal lines size: 32 mm; Three long horizontal lines size: 43 mm; Vertical line size: 86 mm, Narrow spacing between horizontal lines: 10 mm

Installation height 0m - 1m

application Range:

The nailing machine, automatic heel loading machine, the heel setting machine, the upper setting machine, the midsole setting machine and other mechanical equipment play a role in setting the line

Warranty:

we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.

Payment Method:

PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.

Shipping Method:

DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
