Product Details:
|
| Lens Angle: | 55.3° | Number Of Grids: | 20*20=400 |
|---|---|---|---|
| Laser Style: | Line | Light Source: | Red/Green/Blue |
| Wavelength: | 450nm/520nm/650nm | Output Power: | 50mw/100mw Customizable |
| Line Length: | 1.2 Meters | Configure: | Imported Laser Diodes |
| High Light: | Particular Light Spot DOE Laser Module,Square Grid DOE Laser Module,520nm Line Style DOE Laser Module |
||

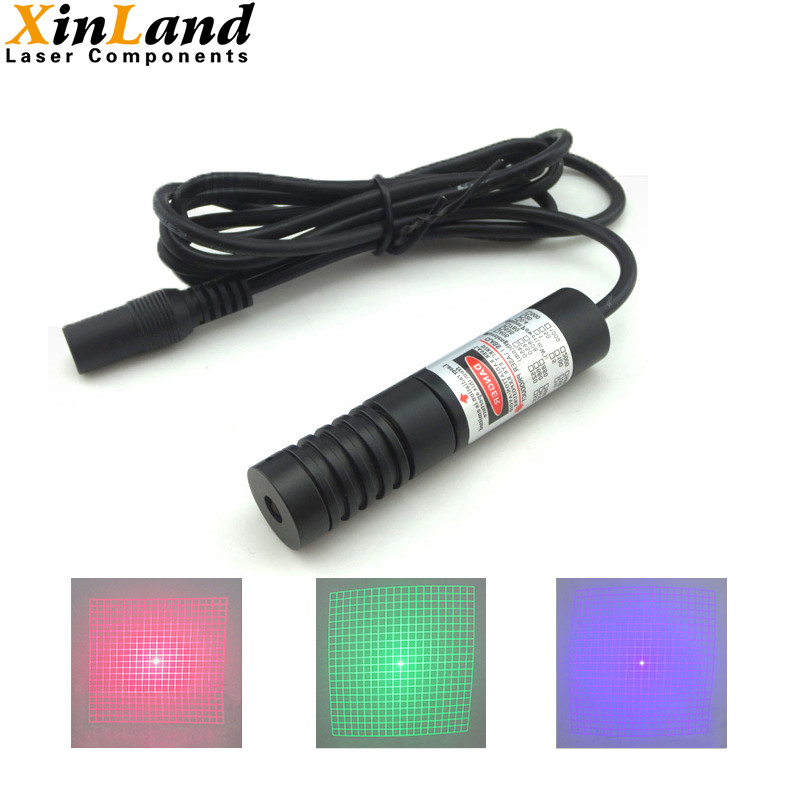

55.3° 400 Square Grid Line Grid Particular Light Spot DOE Laser Module
| Wavelength | Output Power | Voltage(V) | Electric Current | Size |
| 650nm | 100mw | DC 2.8-5.2V | <500mA | Φ16x70mm |
| 520nm | 50mw | DC 2.8-5.2V | <500mA | Φ16x70mm |
| 450nm | 100mw | DC 2.8-5.2V | <500mA | Φ16x70mm |
Light Spot Details:
Warranty:
we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.
Payment Method:
PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.
Shipping Method:
DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
Contact Person: Mrs. Nica Chow
Tel: +86-13991354371
Fax: 86-29-81323155
