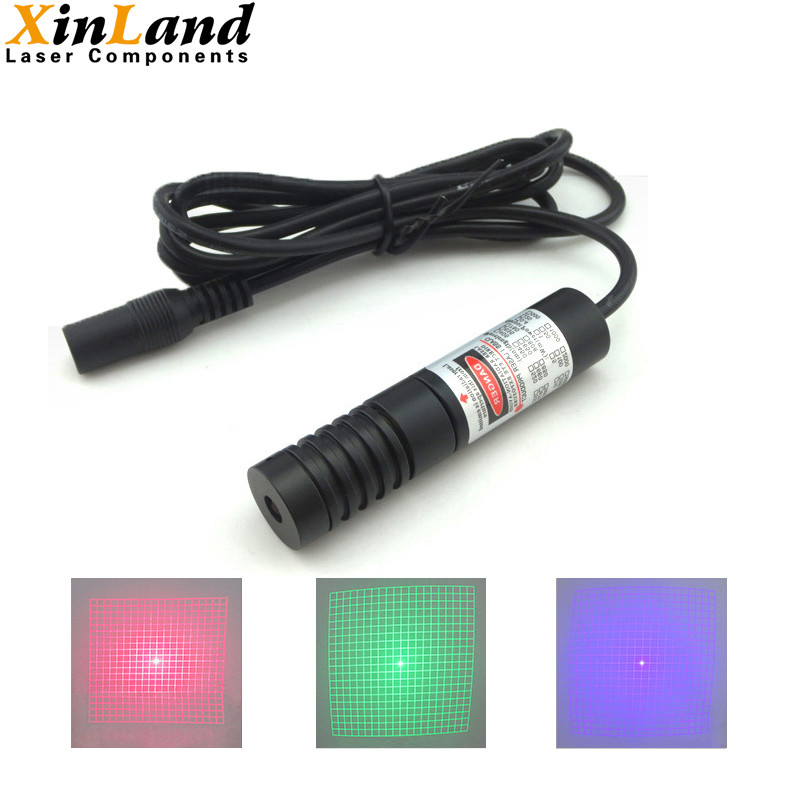

Square Grid Particular Light Spot DOE Laser Module 520nm Line Style

Square Grid Particular Light Spot DOE Laser Module 520nm Line Style

Product Details:
Place of Origin: China
Brand Name: xinland
Certification: CE
Model Number: DOE Laser Module
Detail Information
Place of Origin:
China
Brand Name:
xinland
Certification:
CE
Model Number:
DOE Laser Module
Lens Angle:
55.3°
Number Of Grids:
20*20=400
Laser Style:
Line
Light Source:
Red/Green/Blue
Wavelength:
450nm/520nm/650nm
Output Power:
50mw/100mw Customizable
Line Length:
1.2 Meters
Configure:
Imported Laser Diodes
Highlight:

High Light

Highlight:

Particular Light Spot DOE Laser Module

,

Square Grid DOE Laser Module

,

520nm Line Style DOE Laser Module

Trading Information
Minimum Order Quantity:
10pcs
Price:
Negotiated
Packaging Details:
1pc carton
Delivery Time:
5-8 work days
Payment Terms:
T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
50000pcs per months
Product Description

55.3° 400 Square Grid Line Grid Particular Light Spot DOE Laser Module

Product Details:
Wavelength Output Power Voltage(V) Electric Current Size
650nm 100mw DC 2.8-5.2V <500mA Φ16x70mm
520nm 50mw DC 2.8-5.2V <500mA Φ16x70mm
450nm 100mw DC 2.8-5.2V <500mA Φ16x70mm

Light Spot Details:

Lens angle: 55.3°
At 50 cm: the outer frame is 52.4 cm long (the side length of a single small grid is 2.62 cm)
At 100 cm: the length of the outer frame is 104.8 cm (the side length of a single small grid is 5.24 cm)
Wavelength, Output Power, Voltage and Size Customizable
Square Grid Particular Light Spot DOE Laser Module 520nm Line Style 0
Square Grid Particular Light Spot DOE Laser Module 520nm Line Style 1
Square Grid Particular Light Spot DOE Laser Module 520nm Line Style 2Square Grid Particular Light Spot DOE Laser Module 520nm Line Style 3
