| Place of Origin: | China |
| Brand Name: | xinland |
| Certification: | CE |
| Model Number: | DOE Laser Module |

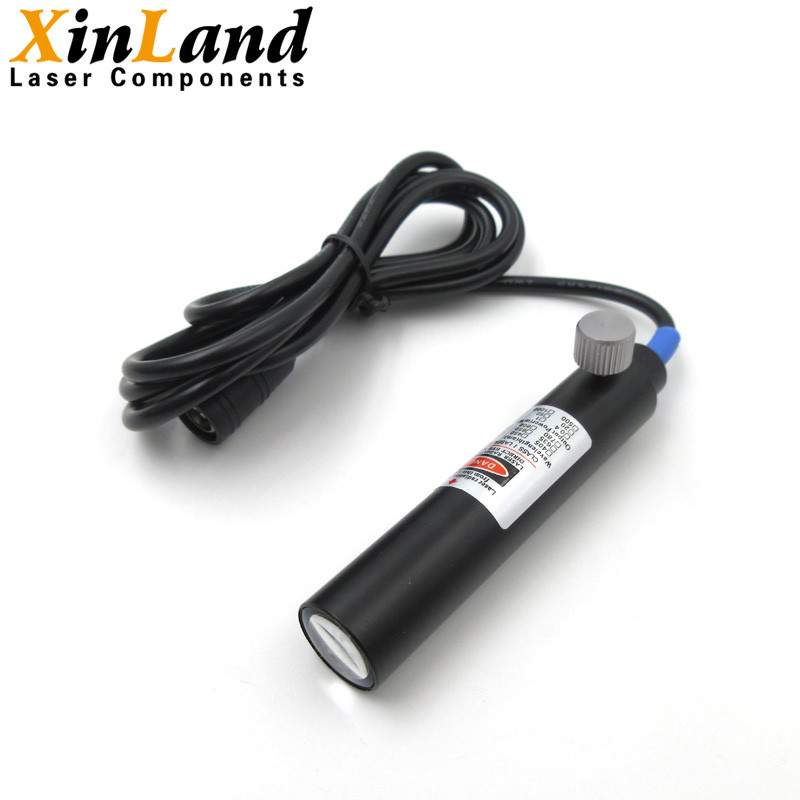

Tianzi Grid Green/Blue Laser Diode Module with Adjustment Knob for Positioning of Mechanical Equipment
Spot Description:
At 15 cm, the side length of the field: 10 mm; At 25 cm, the side length of the field: 20 mm
At 50 cm, the side length of the field: 45 mm; At 100 cm, the side length of the field: 90 mm
Wavelength, Output Power, Voltage and Size Customizable
| Electric Current | <40mA |
| Operating voltage | DC 4.5-5.2V |
| Dimension | Φ16x(85~100)MM |
| Operating Temperature | Normal temperature |
| Cooling mode | Natural cooling |
| Life time | >8000hours |
| Accessories | Mount and power Adaptor |
| Warranty: | 1 year |
Dimensions: Diameter: 16mm, length 85mm-100mm adjustable
Application: industrial production, clothing, shoe machine, textile machine, front machine, nailing machine, automatic rooting machine, heel setting machine, shoe upper setting machine, midsole setting machine and other mechanical equipment positioning.

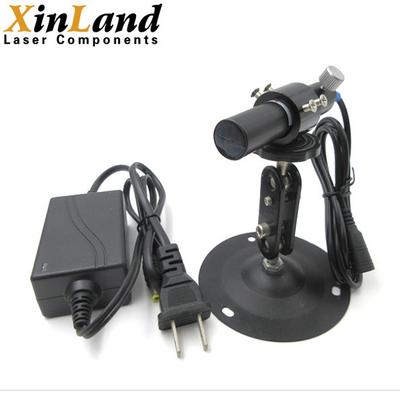

Package Includes: Laser Module + Bracket + 5V Power Supply
Warranty:
we offer one year limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications will beyond our warranty.
Payment Method:
PayPal ( PayPal fee should be afforded at buyer's side), Bank Transfer, Western Union, and Money Gram.
Shipping Method:
DHL/FEDEX/UPS/EMS/TNT Express service; Post Service
