Product Details:
|
| Peak Power: | 800/1000/1200 W | Wavelength: | 808/1064/755/940 ±15nm |
|---|---|---|---|
| Working Current: | ≤120 Typical Value 95 A | Working Voltage: | 1.8/Bar V |
| Weight: | 0.05kg |
Specification
Product Description
Product Features:
1.Gold tin packaging.
2.High reliability and stability.
3.Standard industrial structure.
4.Wide range of customer application conditions.
5.Collimation can be added.
Main applications:
1.Laser hair removal.
2.pumping.
3.Laser illumination.

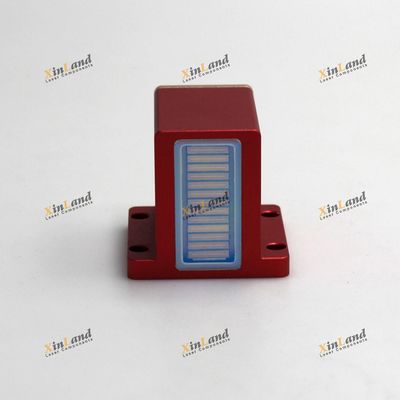

Vertical and Horizontal diode laser stacks and two-dimensional arrays, with power into the multi-kW range, for pumping, directed energy, hair removal, and materials processing.
Continuous Wave (CW) Stacks - microchannel cooling and uses it to enable optimum thermal management at high powers.
Pulsed Stacks - Covering QCW to long pulse conditions with conduction cooling and tap-water cooling options.
Broadest Wavelength Range - The range from 638 nm up to 2200 nm includes all major solid-state and fiber laser pump wavelengths as well as wavelengths used for defense, materials processing and medical aesthetics.
